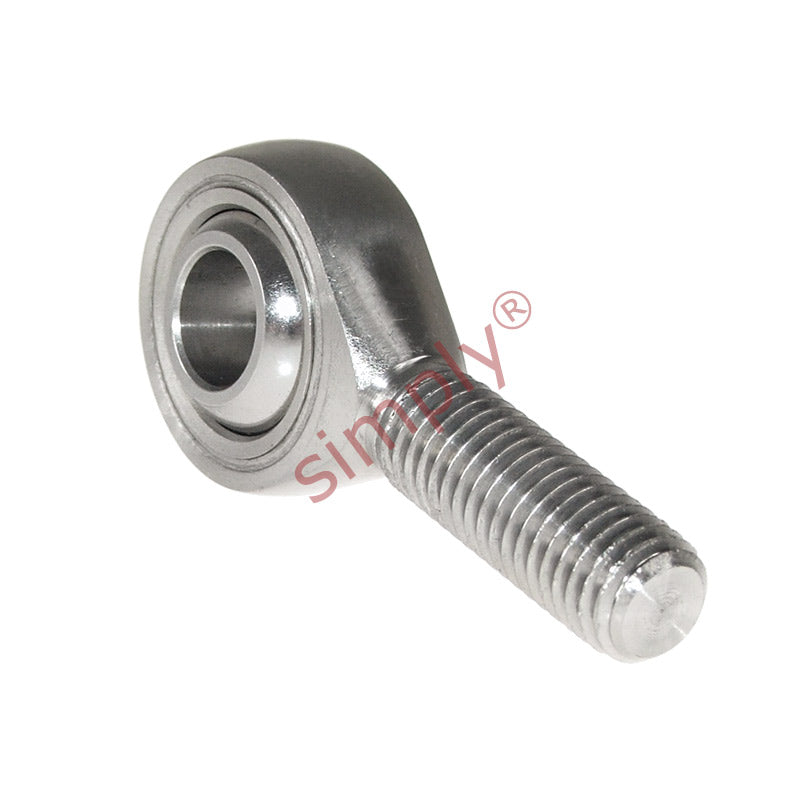

Budget SSPOS5 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
Budget SSPOS5 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
Regular price
£10.20
ex VAT£12.24inc. VAT
Regular price
Sale price
£10.20
ex VAT£12.24
inc. VAT
In stock
Price Break
10+
£9.08
19+
£8.57
29+
£8.47
39+
£8.36
49+
£8.26
74+
£8.16
99+
£7.65
199+
£7.55
249+
£7.45
499+
£7.34
999+
£7.14
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M5x0.8
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 5mm
- Material:
- PTFE Lined
Technical
Technical
| d | 5mm |
|---|---|
| B | 8mm |
| r1 | 0.3mm |
| C1 | 6mm |
| d1 max | 7.7mm |
| d2 | 16mm |
| d3 | M5x0.8 |
| h | 33mm |
| l1 | 20mm |
| l2 | 41mm |
| Ball diameter | 7/16 inch |
| Dynamic load Cr | 3.3 kN |
| Static load Cor | 3.4 kN |
| Max angle α | 13 |
| Weight | 0.0125 kg |
