SKU: SS.POS25.EU

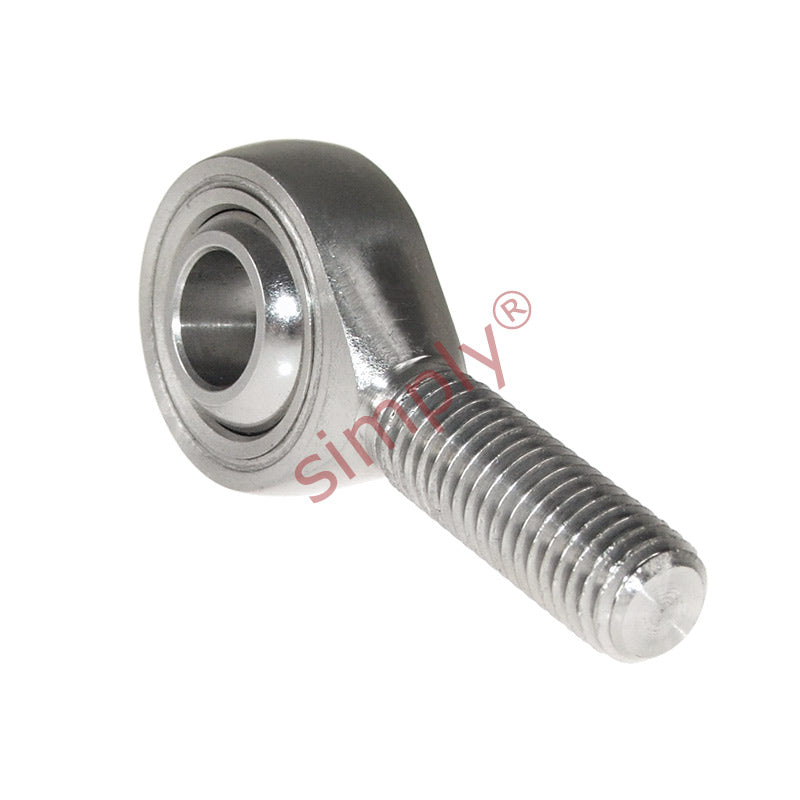

Budget SSPOS25 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 25mm Bore M24x2 Thread
Budget SSPOS25 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 25mm Bore M24x2 Thread
Regular price
£54.61
ex VAT£65.53inc. VAT
Regular price
Sale price
£54.61
ex VAT£65.53
inc. VAT
In stock
Price Break
10+
£48.60
19+
£45.87
29+
£45.33
39+
£44.78
49+
£44.23
74+
£43.69
99+
£40.96
199+
£40.41
249+
£39.87
499+
£39.32
999+
£38.23
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
- Material:
- PTFE Lined
Technical
Technical
| d | 25mm |
|---|---|
| B | 31mm |
| r1 | 0.6mm |
| C1 | 22mm |
| d1 max | 29.5mm |
| d2 | 60mm |
| d3 | M24x2 |
| h | 94mm |
| l1 | 57mm |
| l2 | 124mm |
| Ball diameter | 1-11/16 inch |
| Dynamic load Cr | 47.1 kN |
| Static load Cor | 74.1 kN |
| Max angle α | 15 |
| Weight | 0.65 kg |
