SKU: SS.POS16.EU

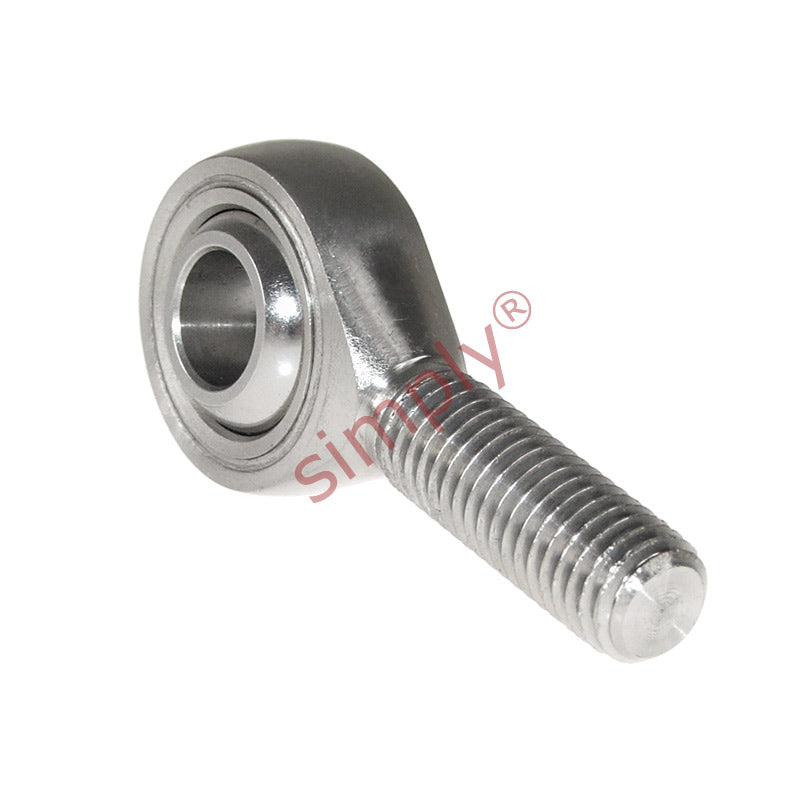

Budget SSPOS16 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 16mm Bore M16x2 Thread
Budget SSPOS16 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 16mm Bore M16x2 Thread
Regular price
£42.90
ex VAT£51.48inc. VAT
Regular price
Sale price
£42.90
ex VAT£51.48
inc. VAT
In stock
Price Break
10+
£38.18
19+
£36.04
29+
£35.61
39+
£35.18
49+
£34.75
74+
£34.32
99+
£32.18
199+
£31.75
249+
£31.32
499+
£30.89
999+
£30.03
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- PTFE Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x2 |
| h | 66mm |
| l1 | 40mm |
| l2 | 85mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle α | 15 |
| Weight | 0.185 kg |
