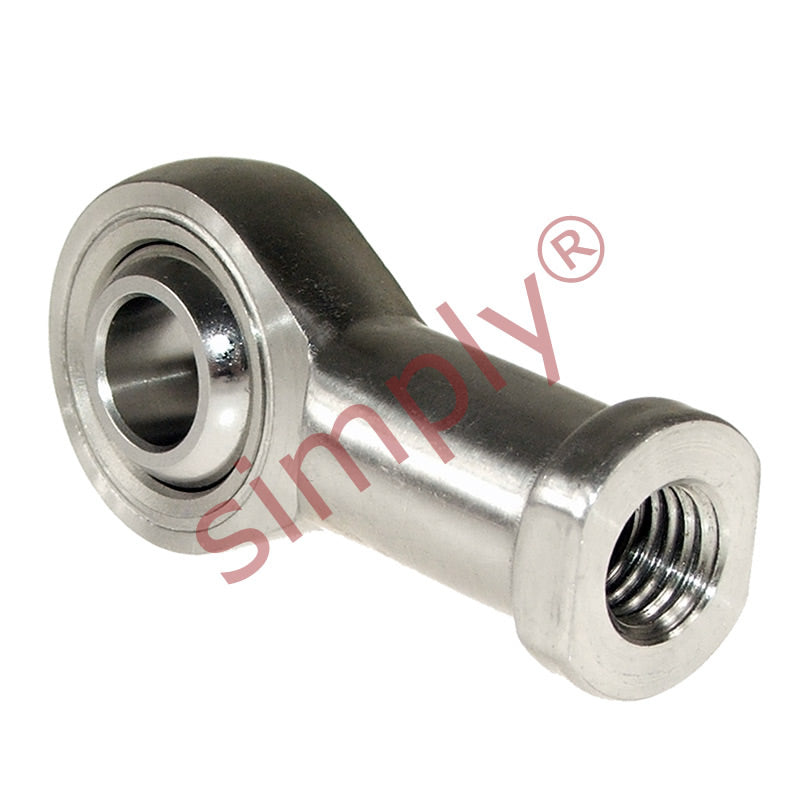

Budget SSPHS8 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
Budget SSPHS8 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
Regular price
£8.63
ex VAT£10.36inc. VAT
Regular price
Sale price
£8.63
ex VAT£10.36
inc. VAT
In stock
Price Break
10+
£7.68
19+
£7.25
29+
£7.16
39+
£7.08
49+
£6.99
74+
£6.90
99+
£6.47
199+
£6.39
249+
£6.30
499+
£6.21
999+
£6.04
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
- Material:
- PTFE Lined
Technical
Technical
| d | 8mm |
|---|---|
| B | 12mm |
| r1 | 0.3mm |
| C1 | 9mm |
| d1 max | 10.3mm |
| d2 | 22mm |
| d3 | M8x1.25 |
| h1 | 36mm |
| L3 | 17mm |
| L4 | 47mm |
| L5 | 5mm |
| d4 | [12.5mm |
| d5 | 16mm |
| S | 14mm |
| Ball diameter | 5/8 inch |
| Dynamic load Cr | 7.1mm |
| Static load Cor | 10.4mm |
| Max angle α | 14 |
| Weight | 0.043 kg |
