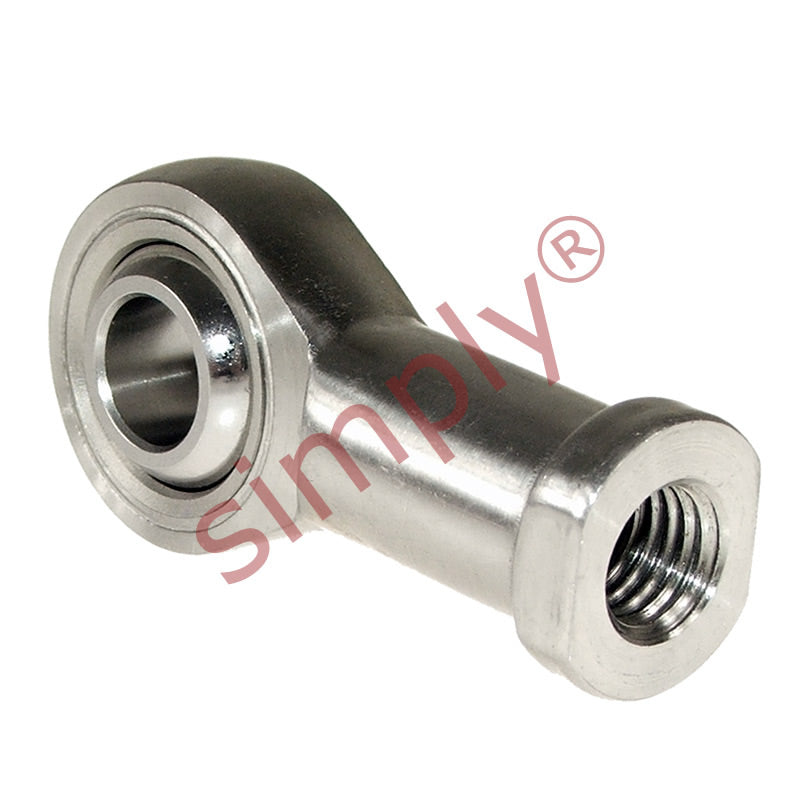

Budget SSPHS6 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 6mm Bore M6x1 Thread
Budget SSPHS6 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 6mm Bore M6x1 Thread
Regular price
£16.75
ex VAT£20.10inc. VAT
Regular price
Sale price
£16.75
ex VAT£20.10
inc. VAT
In stock
Price Break
10+
£14.91
19+
£14.07
29+
£13.90
39+
£13.74
49+
£13.57
74+
£13.40
99+
£12.56
199+
£12.40
249+
£12.23
499+
£12.06
999+
£11.73
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M6x1
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
- Material:
- PTFE Lined
Technical
Technical
| d | 6mm |
|---|---|
| B | 9mm |
| r1 | 0.3mm |
| C1 | 6.75mm |
| d1 max | 8.9mm |
| d2 | 18mm |
| d3 | M6x1 |
| h1 | 30mm |
| L3 | 13mm |
| L4 | 39mm |
| L5 | 5mm |
| d4 | 10mm |
| d5 | 13mm |
| S | 11mm |
| Ball diameter | 1/2 inch |
| Dynamic load Cr | 4.3mm |
| Static load Cor | 7.1mm |
| Max angle α | 13 |
| Weight | 0.025 kg |
