SKU: SS.PHS30L.EU

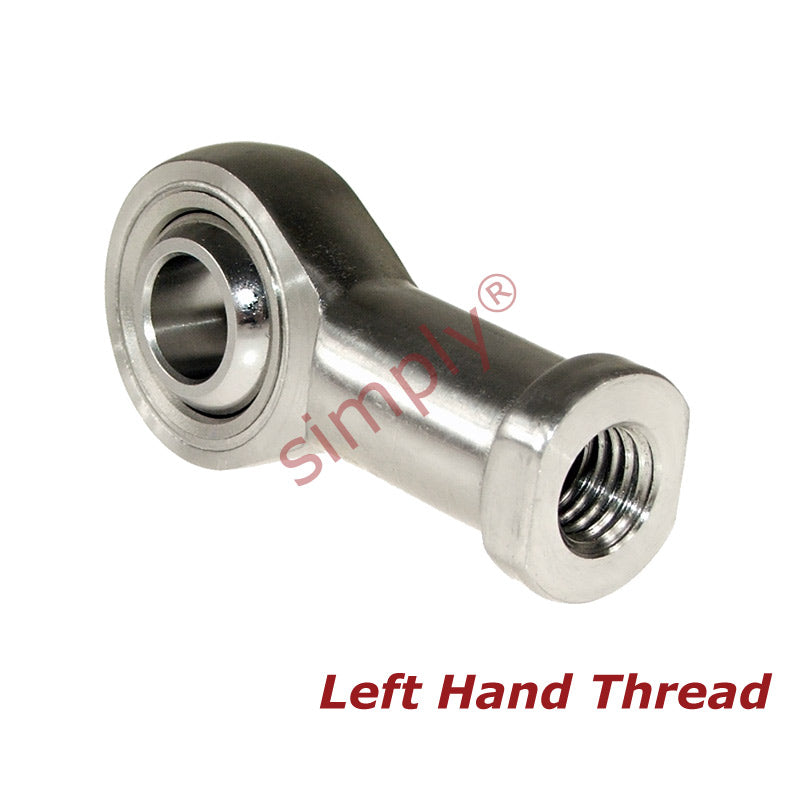

Budget SSPHS30L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 30mm Bore M30x2 Thread
Budget SSPHS30L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 30mm Bore M30x2 Thread
Regular price
£109.80
ex VAT£131.76inc. VAT
Regular price
Sale price
£109.80
ex VAT£131.76
inc. VAT
In stock
Price Break
10+
£97.72
19+
£92.23
29+
£91.13
39+
£90.04
49+
£88.94
74+
£87.84
99+
£82.35
199+
£81.25
249+
£80.15
499+
£79.06
999+
£76.86
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: LEFT hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M30x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 30mm
- Material:
- PTFE Lined
Technical
Technical
| d | 30mm |
|---|---|
| B | 37mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 34.8mm |
| d2 | 70mm |
| d3 | M30x2 |
| h1 | 110mm |
| L3 | 56mm |
| L4 | 145mm |
| L5 | 15mm |
| d4 | 40mm |
| d5 | 50mm |
| S | 41mm |
| Ball diameter | 2 inch |
| Dynamic load Cr | 63.5mm |
| Static load Cor | 94mm |
| Max angle α | 17 |
| Weight | 1.13 kg |
