SKU: SS.PHS18.EU

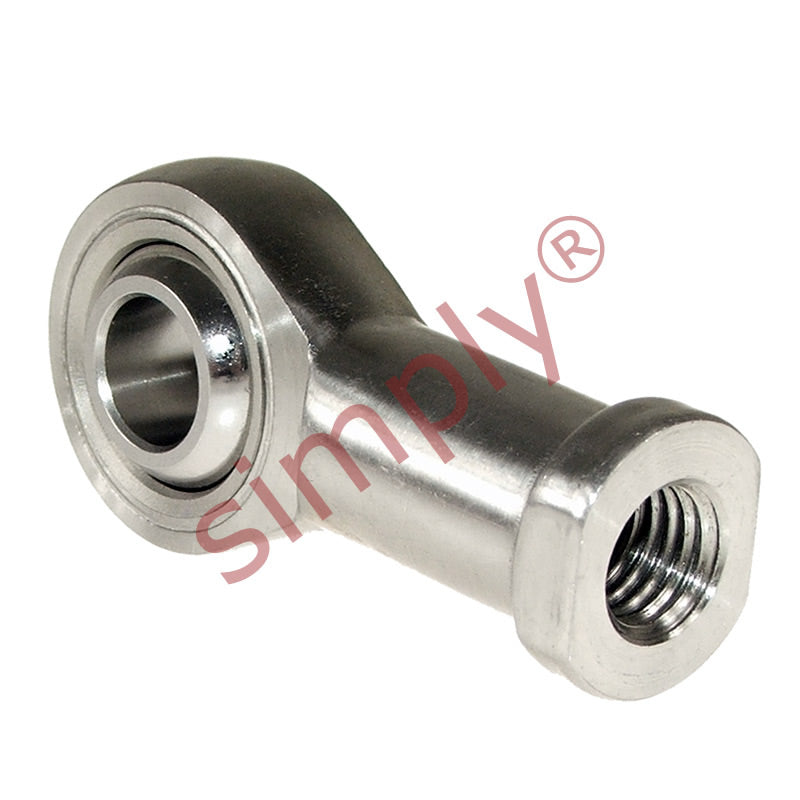

Budget SSPHS18 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Budget SSPHS18 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Regular price
£45.58
ex VAT£54.70inc. VAT
Regular price
Sale price
£45.58
ex VAT£54.70
inc. VAT
In stock
Price Break
10+
£40.57
19+
£38.29
29+
£37.83
39+
£37.38
49+
£36.92
74+
£36.47
99+
£34.19
199+
£33.73
249+
£33.27
499+
£32.82
999+
£31.91
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 18mm
- Material:
- PTFE Lined
Technical
Technical
| d | 18mm |
|---|---|
| B | 23mm |
| r1 | 0.6mm |
| C1 | 16.5mm |
| d1 max | 21.8mm |
| d2 | 42mm |
| d3 | M18x1.5 |
| h1 | 71mm |
| L3 | 36mm |
| L4 | 92mm |
| L5 | 10mm |
| d4 | 25mm |
| d5 | 31mm |
| S | 27mm |
| Ball diameter | 1-1/4 inch |
| Dynamic load Cr | 26.2mm |
| Static load Cor | 30.8mm |
| Max angle α | 15 |
| Weight | 0.295 kg |
