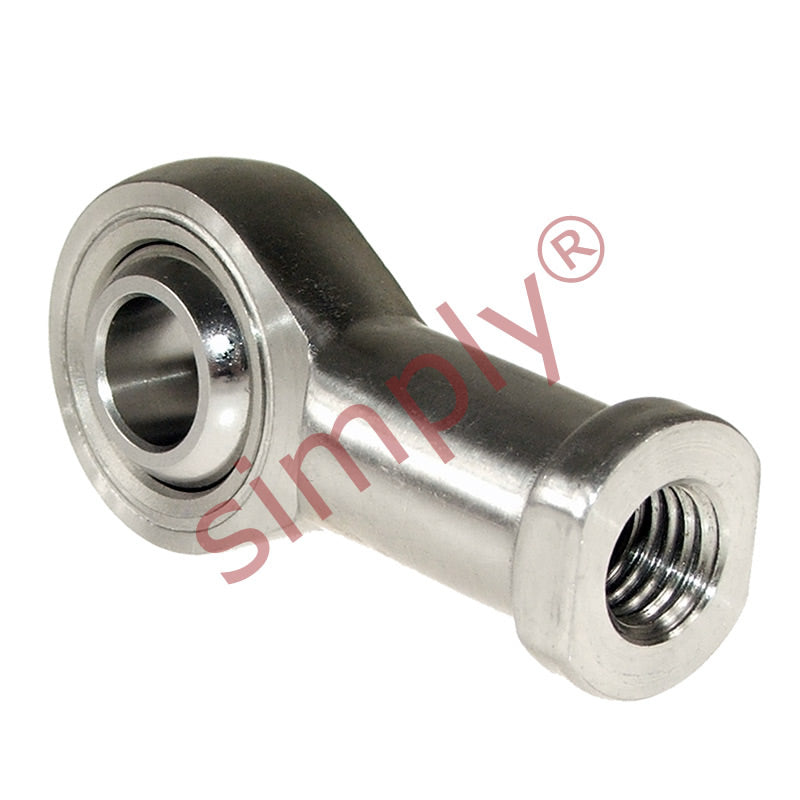

Budget SSPHS16 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread
Budget SSPHS16 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread
Regular price
£28.04
ex VAT£33.65inc. VAT
Regular price
Sale price
£28.04
ex VAT£33.65
inc. VAT
In stock
Price Break
10+
£24.96
19+
£23.55
29+
£23.27
39+
£22.99
49+
£22.71
74+
£22.43
99+
£21.03
199+
£20.75
249+
£20.47
499+
£20.19
999+
£19.63
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- PTFE Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x2 |
| h1 | 64mm |
| L3 | 33mm |
| L4 | 83mm |
| L5 | 8mm |
| d4 | 22mm |
| d5 | 27mm |
| S | 22mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4mm |
| Static load Cor | 25.9mm |
| Max angle α | 15 |
| Weight | 0.21 kg |
