SKU: SS.D1400-008

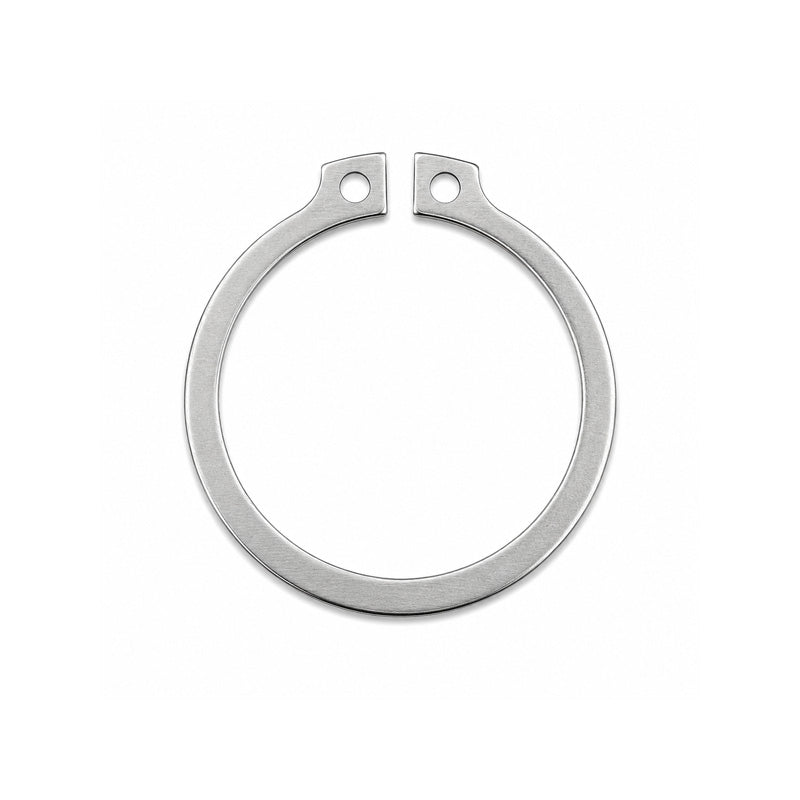

Stainless External Circlip for 8mm Shaft Diameter Un-Sprung Dia 7.4mm
Equivalent to: SSD1400-008
In stock
Price Break
Description
Stainless Steel Internal Circlips: The most common form of axially fitted circlips for bores with grooves.
The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Material: Stainless Spring Steel
Benefits: Cost effective replacement, durable, removable, corrosion resistant
Note: Please be aware that these circlips can feature a slightly altered design than pictured. This is to reinforce the strength of the circlip when used in smaller applications. If you require a specific design then please contact us for availability.
Equivalent: SSD1400-008
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 7.4mm
- Material:
- Stainless Steel
- Shaft Size:
- 8mm
- Thickness:
- 0.8mm
- Groove Diameter:
- 7.6mm
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size | 8mm |
| Thickness s | 0.8mm |
| Thickness tolerance | -0.05mm |
| Unstressed diameter d3 | 7.4mm |
| Unstressed diameter tolerance | +0.06/-0.18mm |
| Lug a | 3.2mm |
| Beam b | 1.5mm |
| d5 | 1.2mm |
| Weight | 0.158 g |
| --- | Groove Details |
| Groove diameter | 7.6mm |
| Groove tolerance | -0.06mm |
| Minimum groove width | 0.9mm |
| Groove depth | 0.2mm |
