SKU: SRB35/2_16/32-TRAN

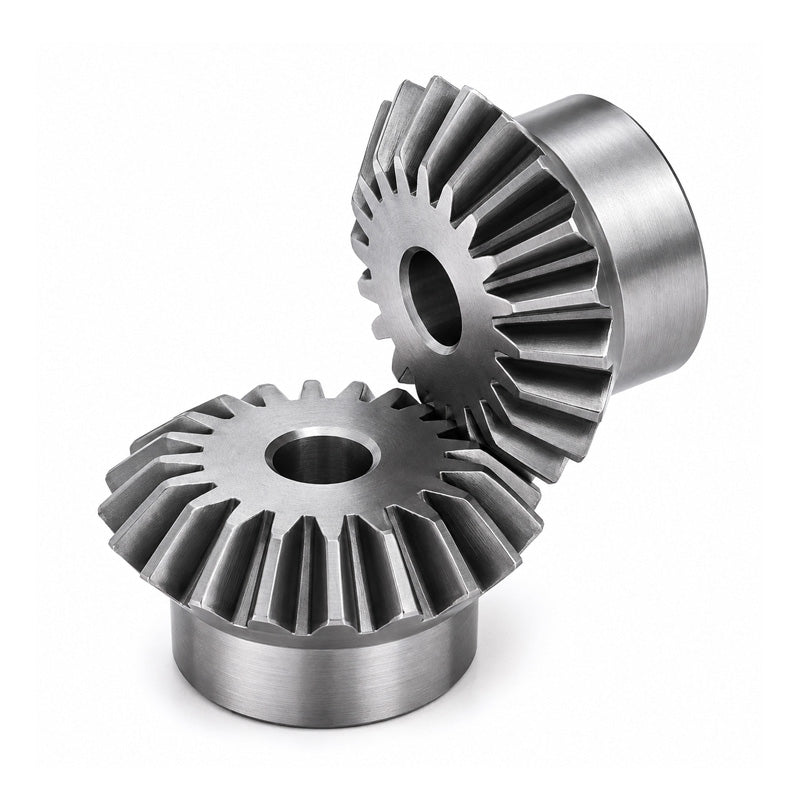

SRB35/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 3.5 MOD 20deg Pressure Angle
SRB35/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 3.5 MOD 20deg Pressure Angle
Regular price
£146.59
ex VAT£175.91inc. VAT
Regular price
Sale price
£146.59
ex VAT£175.91
inc. VAT
Equivalent to: SRB35/2
In stock
Price Break
10+
£130.47
19+
£123.14
29+
£121.67
39+
£120.20
49+
£118.74
74+
£117.27
99+
£109.94
199+
£108.48
249+
£107.01
499+
£105.54
999+
£102.61
Couldn't load pickup availability
Description
Description
Equivalent: SRB35/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 14mm / G2: 16mm
- Number of Teeth:
- 16/32
- Pitch Circle Diameter:
- G1: 64mm / G2: 113mm
Technical
Technical
| Gear 1 - Pitch Module | 3.5 |
|---|---|
| Gear 1 - No. Teeth | 16 |
| Gear 1 - dp | 56mm |
| Gear 1 - A+V | 77mm |
| Gear 1 - dm | 42mm |
| Gear 1 - Bore | 14mm |
| Gear 1 - F | 22mm |
| Gear 1 - A | 42.1mm |
| Gear 1 - de | 64mm |
| Gear 1 - S | 3mm |
| Gear 1 - Lm | 18mm |
| Gear 2 - Pitch Module | 3.5 |
| Gear 2 - No. Teeth | 32 |
| Gear 2 - dp | 112mm |
| Gear 2 - A+V | 62mm |
| Gear 2 - dm | 70mm |
| Gear 2 - Bore | 16mm |
| Gear 2 - F | 22mm |
| Gear 2 - A | 45.06mm |
| Gear 2 - de | 113mm |
| Gear 2 - S | 6mm |
| Gear 2 - Lm | 22mm |
