SKU: SRB25/3_15/45-TRAN

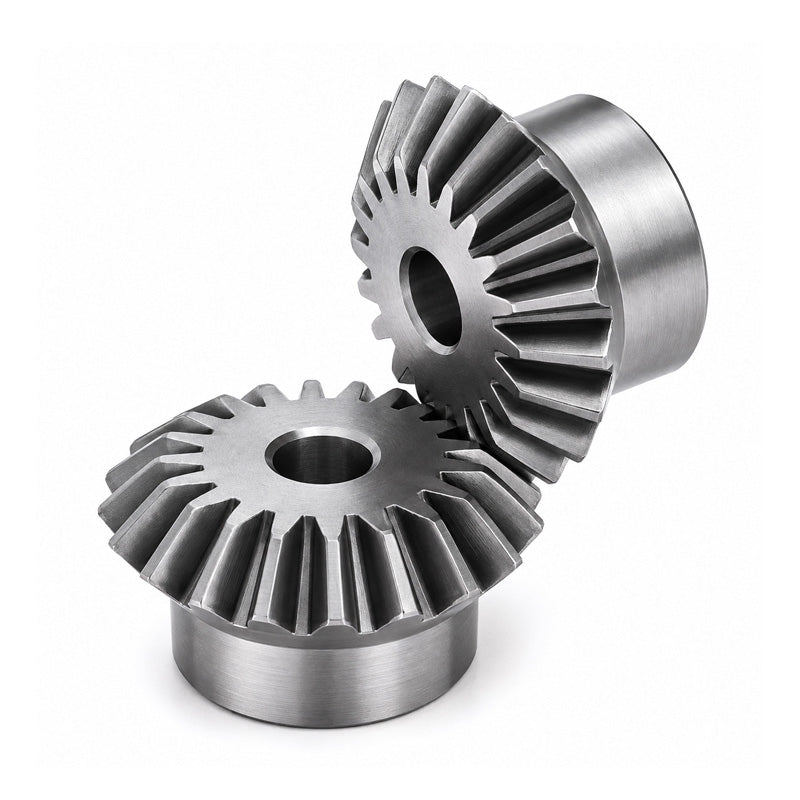

SRB25/3 15/45 Tooth Metric En8 Steel Bevel Gear Set 3:1 Ratio 2.5 MOD 20deg Pressure Angle
SRB25/3 15/45 Tooth Metric En8 Steel Bevel Gear Set 3:1 Ratio 2.5 MOD 20deg Pressure Angle
Regular price
£134.54
ex VAT£161.45inc. VAT
Regular price
Sale price
£134.54
ex VAT£161.45
inc. VAT
Equivalent to: SRB25/3
In stock
Price Break
10+
£119.74
19+
£113.01
29+
£111.67
39+
£110.32
49+
£108.98
74+
£107.63
99+
£100.91
199+
£99.56
249+
£98.21
499+
£96.87
999+
£94.18
Couldn't load pickup availability
Description
Description
Equivalent: SRB25/3
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 12mm / G2: 20mm
- Number of Teeth:
- 15/45
- Pitch Circle Diameter:
- G1: 44.2mm / G2: 113.4mm
Technical
Technical
| Gear 1 - Pitch Module | 2.5 |
|---|---|
| Gear 1 - No. Teeth | 15 |
| Gear 1 - dp | 37.5mm |
| Gear 1 - A+V | 73mm |
| Gear 1 - dm | 32.3mm |
| Gear 1 - Bore | 12mm |
| Gear 1 - F | 18mm |
| Gear 1 - A | 34.6mm |
| Gear 1 - de | 44.2mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 15.9mm |
| Gear 2 - Pitch Module | 2.5 |
| Gear 2 - No. Teeth | 45 |
| Gear 2 - dp | 112.5mm |
| Gear 2 - A+V | 52mm |
| Gear 2 - dm | 60.3mm |
| Gear 2 - Bore | 20mm |
| Gear 2 - F | 18mm |
| Gear 2 - A | 39.7mm |
| Gear 2 - de | 113.4mm |
| Gear 2 - S | 4.4mm |
| Gear 2 - Lm | 25mm |
