SKU: SRB20/2_16/32-TRAN

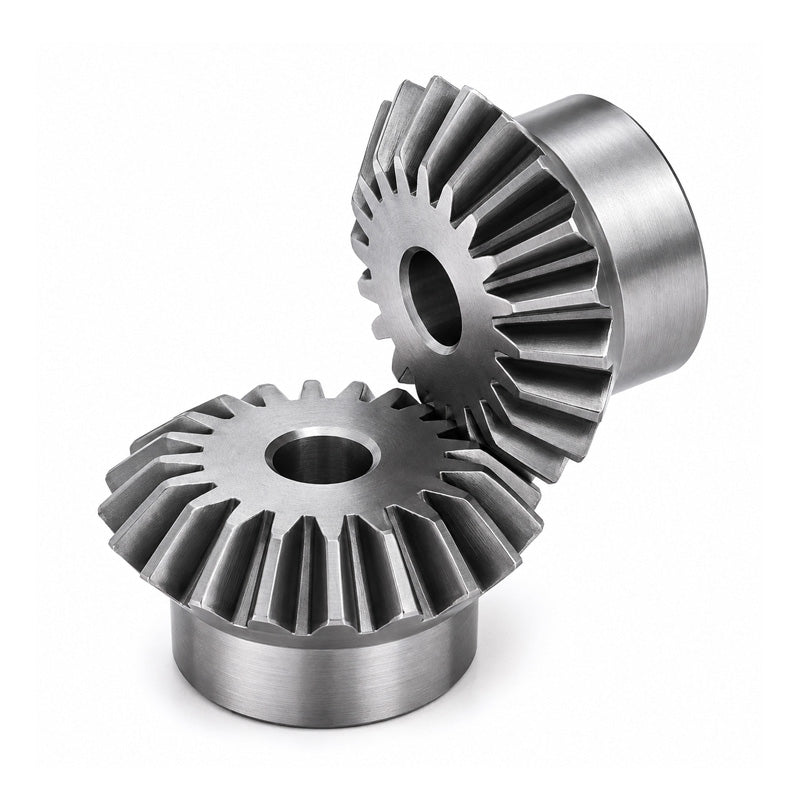

SRB20/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 2.0 MOD 20deg Pressure Angle
SRB20/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 2.0 MOD 20deg Pressure Angle
Regular price
£86.15
ex VAT£103.38inc. VAT
Regular price
Sale price
£86.15
ex VAT£103.38
inc. VAT
Equivalent to: SRB20/2
In stock
Price Break
10+
£76.67
19+
£72.37
29+
£71.50
39+
£70.64
49+
£69.78
74+
£68.92
99+
£64.61
199+
£63.75
249+
£62.89
499+
£62.03
999+
£60.31
Couldn't load pickup availability
Description
Description
Equivalent: SRB20/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 8mm / G2: 12mm
- Number of Teeth:
- 16/32
- Pitch Circle Diameter:
- G1: 36mm / G2: 65.57mm
Technical
Technical
| Gear 1 - Pitch Module | 2.0 |
|---|---|
| Gear 1 - No. Teeth | 16 |
| Gear 1 - dp | 32mm |
| Gear 1 - A+V | 45mm |
| Gear 1 - dm | 24mm |
| Gear 1 - Bore | 8mm |
| Gear 1 - F | 12mm |
| Gear 1 - A | 24.56mm |
| Gear 1 - de | 36mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 11mm |
| Gear 2 - Pitch Module | 2.0 |
| Gear 2 - No. Teeth | 32 |
| Gear 2 - dp | 64mm |
| Gear 2 - A+V | 38mm |
| Gear 2 - dm | 36mm |
| Gear 2 - Bore | 12mm |
| Gear 2 - F | 12mm |
| Gear 2 - A | 28.08mm |
| Gear 2 - de | 65.57mm |
| Gear 2 - S | 4mm |
| Gear 2 - Lm | 13mm |
