SKU: SRB15/4_15/60-TRAN

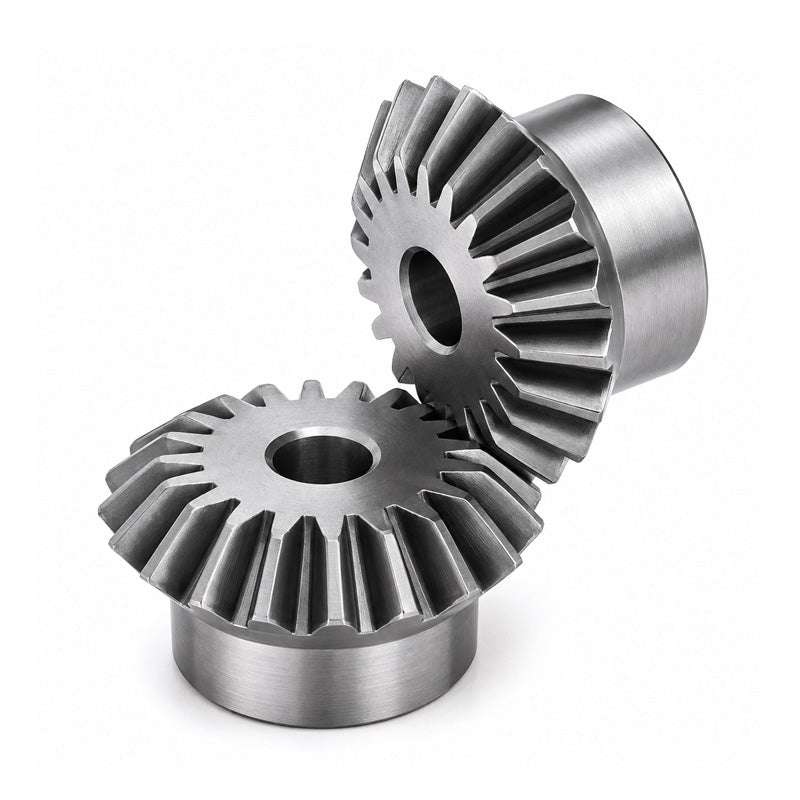

SRB15/4 15/60 Tooth Metric En8 Steel Bevel Gear Set 4:1 Ratio 1.5 MOD 20deg Pressure Angle
SRB15/4 15/60 Tooth Metric En8 Steel Bevel Gear Set 4:1 Ratio 1.5 MOD 20deg Pressure Angle
Regular price
£134.54
ex VAT£161.45inc. VAT
Regular price
Sale price
£134.54
ex VAT£161.45
inc. VAT
Equivalent to: SRB15/4
In stock
Price Break
10+
£119.74
19+
£113.01
29+
£111.67
39+
£110.32
49+
£108.98
74+
£107.63
99+
£100.91
199+
£99.56
249+
£98.21
499+
£96.87
999+
£94.18
Couldn't load pickup availability
Description
Description
Equivalent: SRB15/4
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 8mm / G2: 16mm
- Number of Teeth:
- 15/60
- Pitch Circle Diameter:
- G1: 26.7mm / G2: 90.4mm
Technical
Technical
| Gear 1 - Pitch Module | 1.5 |
|---|---|
| Gear 1 - No. Teeth | 15 |
| Gear 1 - dp | 22.5mm |
| Gear 1 - A+V | 57mm |
| Gear 1 - dm | 20.3mm |
| Gear 1 - Bore | 8mm |
| Gear 1 - F | 11mm |
| Gear 1 - A | 23mm |
| Gear 1 - de | 26.7mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 11.7mm |
| Gear 2 - Pitch Module | 1.5 |
| Gear 2 - No. Teeth | 60 |
| Gear 2 - dp | 90mm |
| Gear 2 - A+V | 42mm |
| Gear 2 - dm | 50.3mm |
| Gear 2 - Bore | 16mm |
| Gear 2 - F | 11mm |
| Gear 2 - A | 34mm |
| Gear 2 - de | 90.4mm |
| Gear 2 - S | 2.8mm |
| Gear 2 - Lm | 25mm |
