SKU: SRB15/2_16/32-TRAN

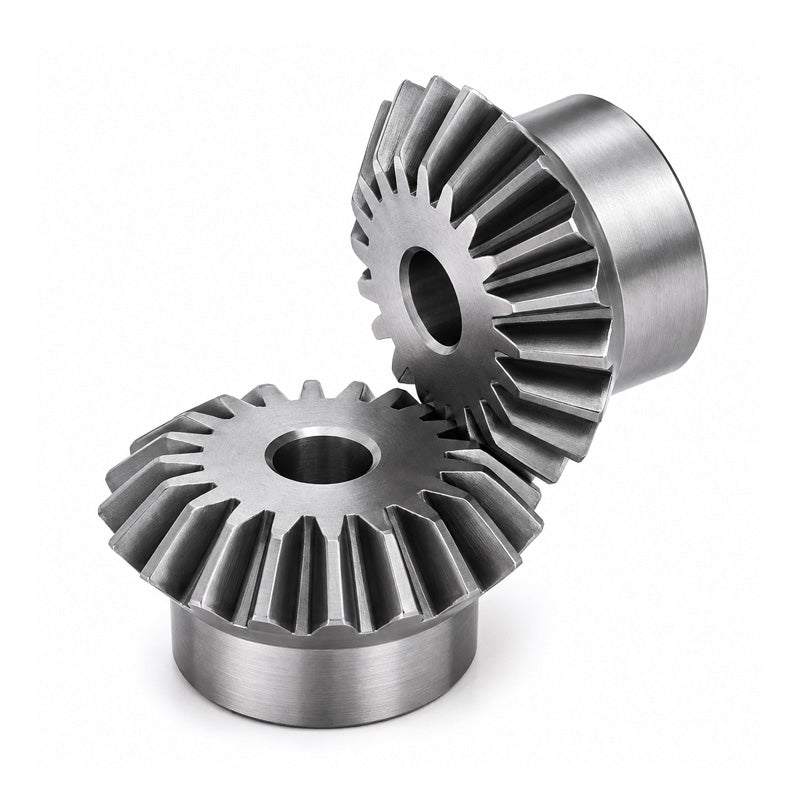

SRB15/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 1.5 MOD 20deg Pressure Angle
SRB15/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 1.5 MOD 20deg Pressure Angle
Regular price
£62.65
ex VAT£75.18inc. VAT
Regular price
Sale price
£62.65
ex VAT£75.18
inc. VAT
Equivalent to: SRB15/2
In stock
Price Break
10+
£55.76
19+
£52.63
29+
£52.00
39+
£51.37
49+
£50.75
74+
£50.12
99+
£46.99
199+
£46.36
249+
£45.73
499+
£45.11
999+
£43.86
Couldn't load pickup availability
Description
Description
Equivalent: SRB15/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 8mm / G2: 8mm
- Number of Teeth:
- 16/32
- Pitch Circle Diameter:
- G1: 27mm / G2: 48mm
Technical
Technical
| Gear 1 - Pitch Module | 1.5 |
|---|---|
| Gear 1 - No. Teeth | 16 |
| Gear 1 - dp | 24mm |
| Gear 1 - A+V | 36mm |
| Gear 1 - dm | 18mm |
| Gear 1 - Bore | 8mm |
| Gear 1 - F | 10mm |
| Gear 1 - A | 21.53mm |
| Gear 1 - de | 27mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 10.5mm |
| Gear 2 - Pitch Module | 1.5 |
| Gear 2 - No. Teeth | 32 |
| Gear 2 - dp | 48mm |
| Gear 2 - A+V | 32mm |
| Gear 2 - dm | 30mm |
| Gear 2 - Bore | 8mm |
| Gear 2 - F | 10mm |
| Gear 2 - A | 24.97mm |
| Gear 2 - de | 48mm |
| Gear 2 - S | 3mm |
| Gear 2 - Lm | 14mm |
