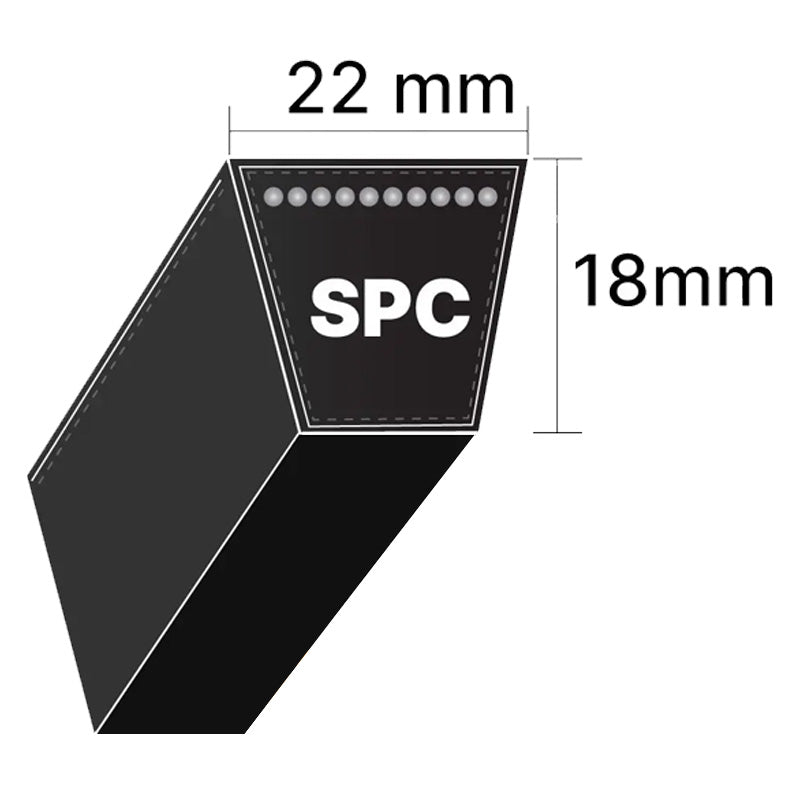

SPC4250 Pix SPC-Section V-Belt

SPC Section Wedge Type V Belts: Major Brand longer life wedge 22x18mm (7/8x23/32 inch) belts, these are hugely popular due to their space saving properties. Ideal for industrial applications and are suitable for a range of duties ranging from light to very heavy duties such as driving crushing devices.
Benefits: Universal wedge profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Brand / Quality:

Pix - High Quality

Belt Number:

SPC4250

Inside Length Approx:

4167mm

Outside Length Approx:

4280mm

Belt Width Approx:

22mm

Belt Depth Approx:

18mm

Belt Datum Length Approx:

4250mm
