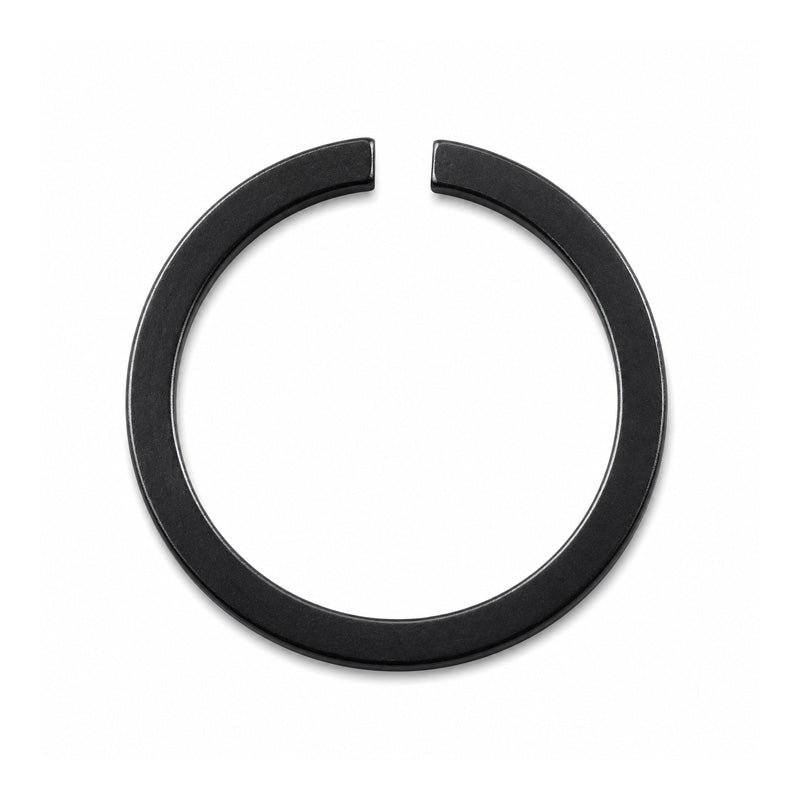

• SP60 Snap Ring to Suit 60mm Outside Diameter of Bearing
1 1

SKU: SP60-M3200

SP60 Snap Ring to Suit 60mm Outside Diameter of Bearing

SP60 Snap Ring to Suit 60mm Outside Diameter of Bearing
£4.79 ex VAT£5.75inc. VAT
£4.79 ex VAT£5.75 inc. VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CBS60 CBS-60 3200-60 SP60 SP-60 M3200-60

Low stock

Price Break
5+ £4.74
10+ £4.55
20+ £4.45
50+ £4.31
100+ £4.22
500+ £3.98
1000+ £3.35
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52

Equivalent: DIN5417 DIN 5417 CBS60 CBS-60 3200-60 SP60 SP-60 M3200-60
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
56.7mmmm
Shaft Size:
60mm
Technical
d1 60mm
s 1.4mm (Tolerance -0.1)
b 2.1mm (Tolerance -0.15)
d3 56.7mmmm (Tolerance 0.8)
e approx 4mm
r min 0.6mm
C2 61.2mm
FN 36.85kN
FR 24.55kN
g 5
Max Rpm x1000 5
Weight 0.0086g
