SKU: SP120-M3200

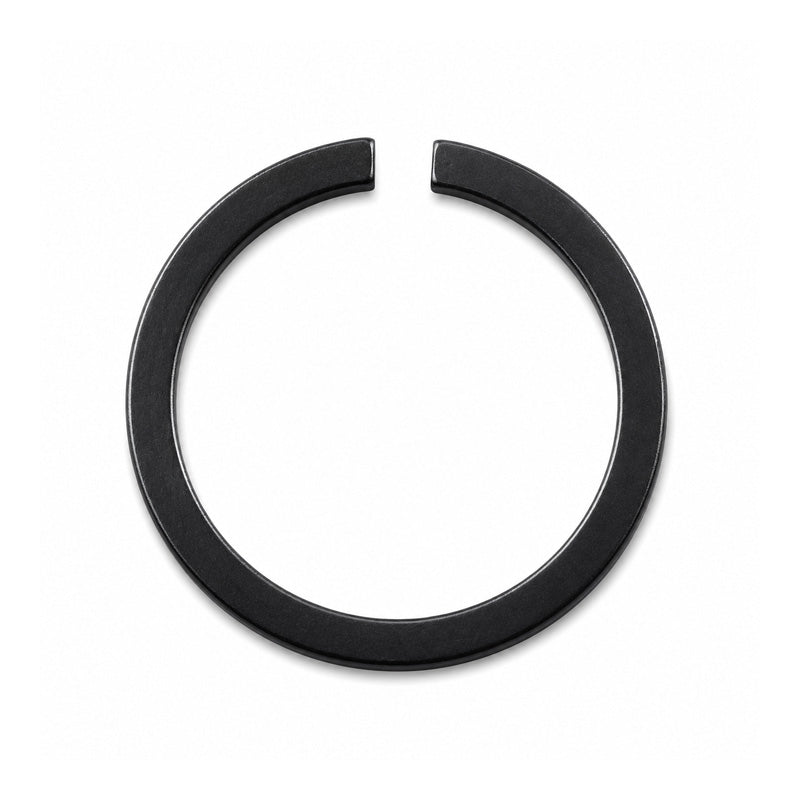

SP120 Snap Ring to Suit 120mm Outside Diameter of Bearing
SP120 Snap Ring to Suit 120mm Outside Diameter of Bearing
Regular price
£4.54
ex VAT£5.45inc. VAT
Regular price
Sale price
£4.54
ex VAT£5.45
inc. VAT
Equivalent to: DIN5417 DIN 5417 CBS120 CBS-120 3200-120 SP120 SP-120 M3200-120
In stock
Price Break
5+
£3.18
10+
£2.72
20+
£2.50
50+
£2.27
100+
£1.82
500+
£1.59
1000+
£1.36
Description
Description
|
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52 |
Equivalent: DIN5417 DIN 5417 CBS120 CBS-120 3200-120 SP120 SP-120 M3200-120
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 113.6mm
- Shaft Size:
- 120mm
Technical
Technical
| d1 | 120mm |
|---|---|
| s | 2.82mm (Tolerance -0.1) |
| b | 7.21mm (Tolerance -0.15) |
| d3 | 113.6mm (Tolerance +1.0) |
| e approx | 7mm |
| r min | 0.7mm |
| d2 | 115.21mm (Tolerance -0.5) |
| m | 3.1mm (Tolerance 0.3) |
| C2 | 129.7mm |
| FN | 143kN |
| FR | 140kN |
| g | 3.5 |
| FRg | 21.3kN |
| kN | 291mm |
| Max Rpm x1000 | 2 |
| Weight | 0.0606g |
