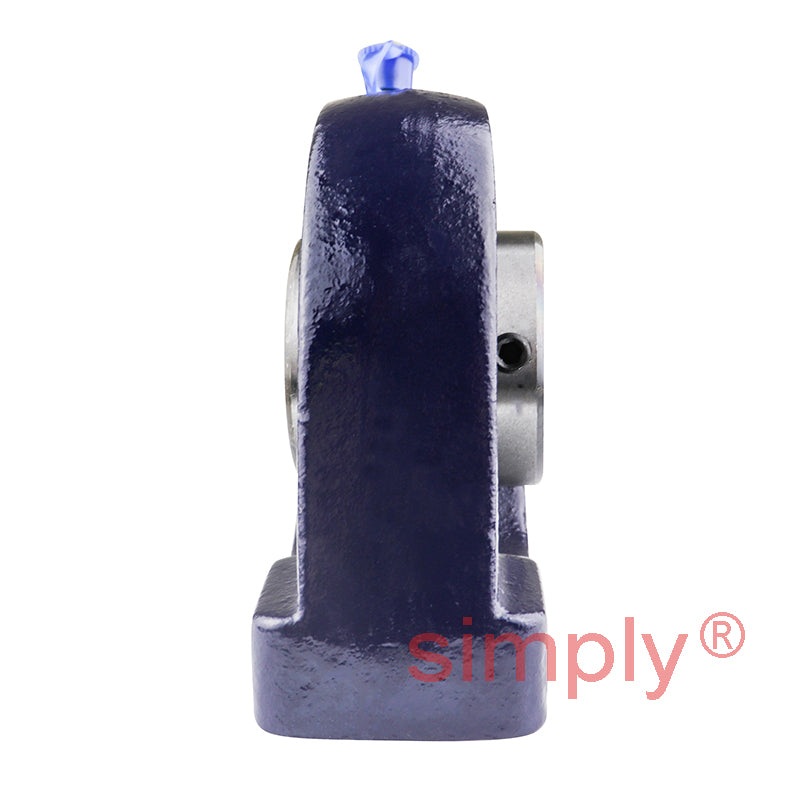

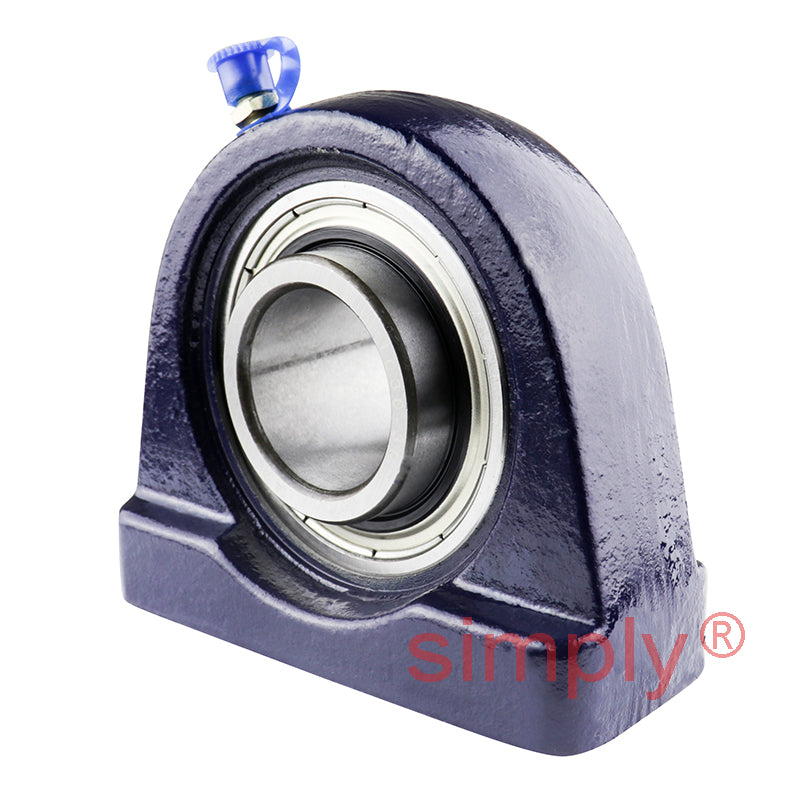

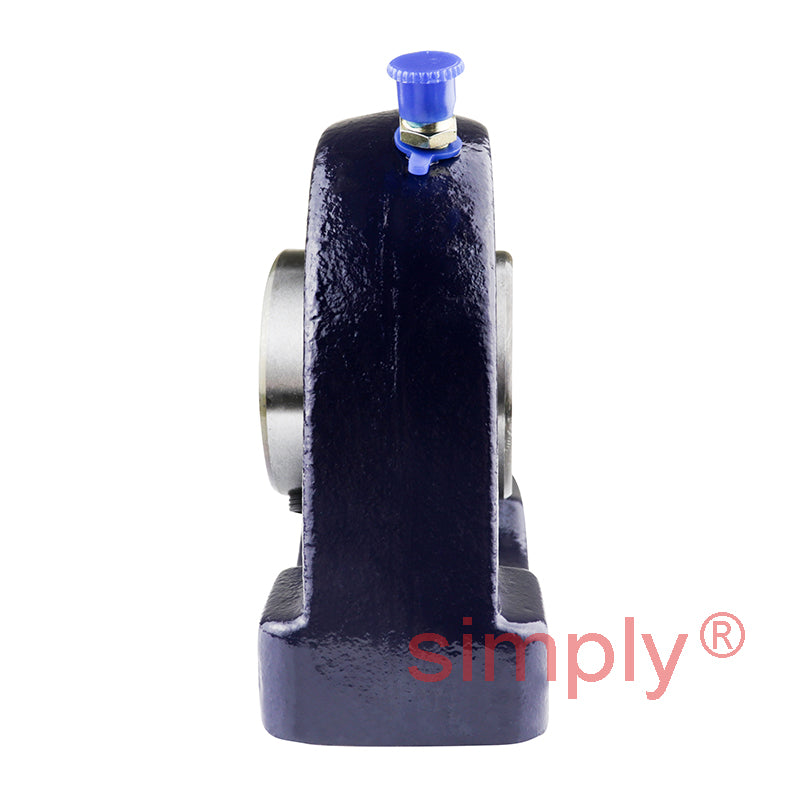

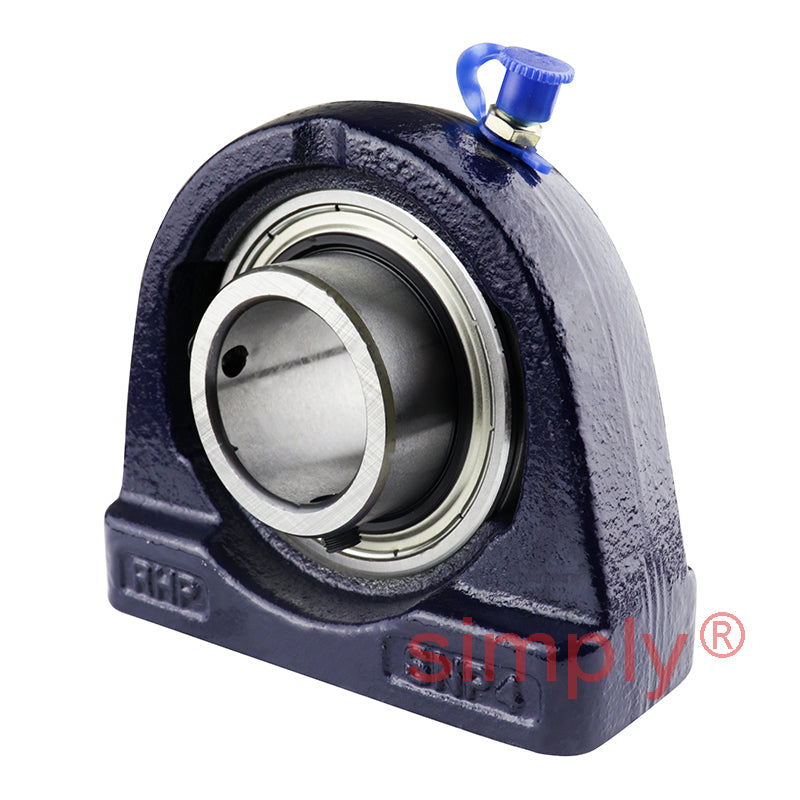

• RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert
  • RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert
  • RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert
  • RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert
1 4

SKU: SNP30-RHP

RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert

RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert
£53.53 ex VAT£64.24inc. VAT
£53.53 ex VAT£64.24 inc. VAT
Sale Sold out

In stock

Price Break
10+ £47.64
20+ £44.96
30+ £44.43
40+ £43.89
50+ £43.36
75+ £42.82
100+ £40.15
200+ £39.61
250+ £39.08
500+ £38.54
1000+ £37.47
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SNP
Bolt Hole Centres:
76.2mm
Technical
Bore 30mm
L 96mm
H 42.9mm
H1 16.5mm
H2 83.9mm
J 76.2mm
Threads M10x1.50
A 40mm
A1 28mm
B 38.1mm
s 15.93mm
d1 40mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
