• RHP SNP3/4 Threaded Base Small Footprint Pillow / Plummer Block and 3/4 inch Bore Grub Screw Full Width Insert
1 1

SKU: SNP3/4-RHP

RHP SNP3/4 Threaded Base Small Footprint Pillow / Plummer Block and 3/4 inch Bore Grub Screw Full Width Insert

RHP SNP3/4 Threaded Base Small Footprint Pillow / Plummer Block and 3/4 inch Bore Grub Screw Full Width Insert
£40.20 ex VAT£48.24inc. VAT
£40.20 ex VAT£48.24 inc. VAT
Sale Sold out

In stock

Price Break
10+ £35.78
20+ £33.77
30+ £33.36
40+ £32.96
50+ £32.56
75+ £32.16
100+ £30.15
200+ £29.75
250+ £29.34
500+ £28.94
1000+ £28.14
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

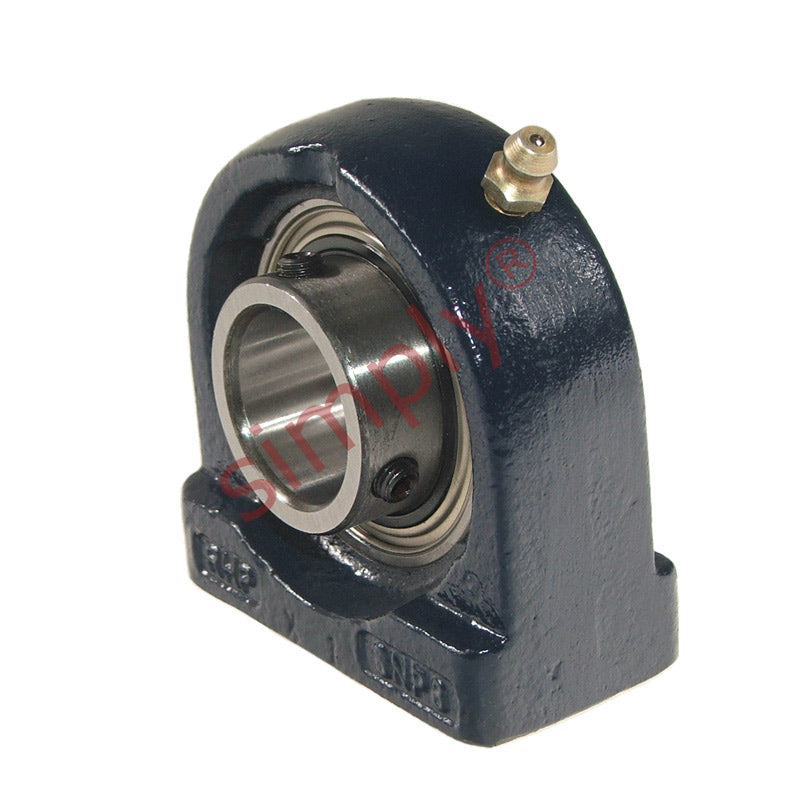

RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint

Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
SNP
Bolt Hole Centres:
50.8mm = 2 inch
Technical
Bore 3/4 inch
L 2.559 inch
H 1.311 inch
H1 0.531 inch
H2 2.591 inch
J 2 inch
Threads 3/8-16 UNC
A 1.26 inch
A1 0.886 inch
B 1.219 inch
s 0.502 inch
d1 1.122 inch
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
