SKU: SNP20-RHP

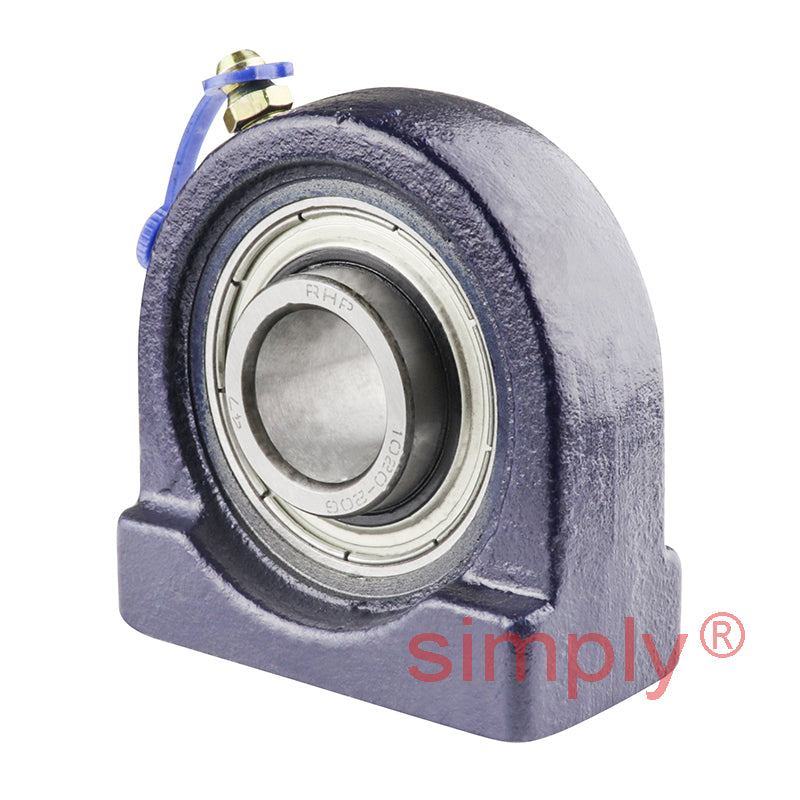

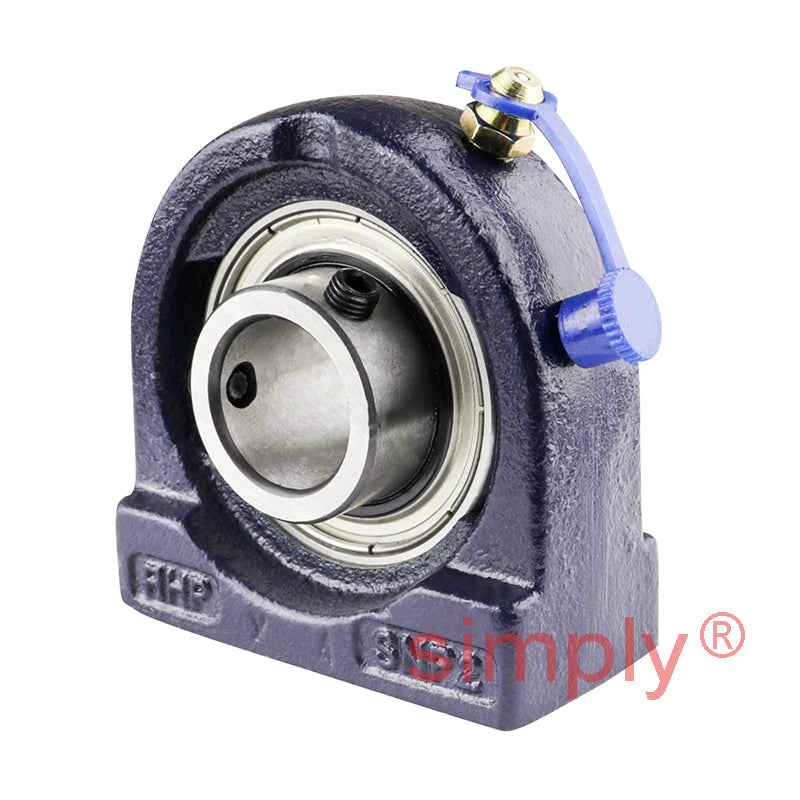

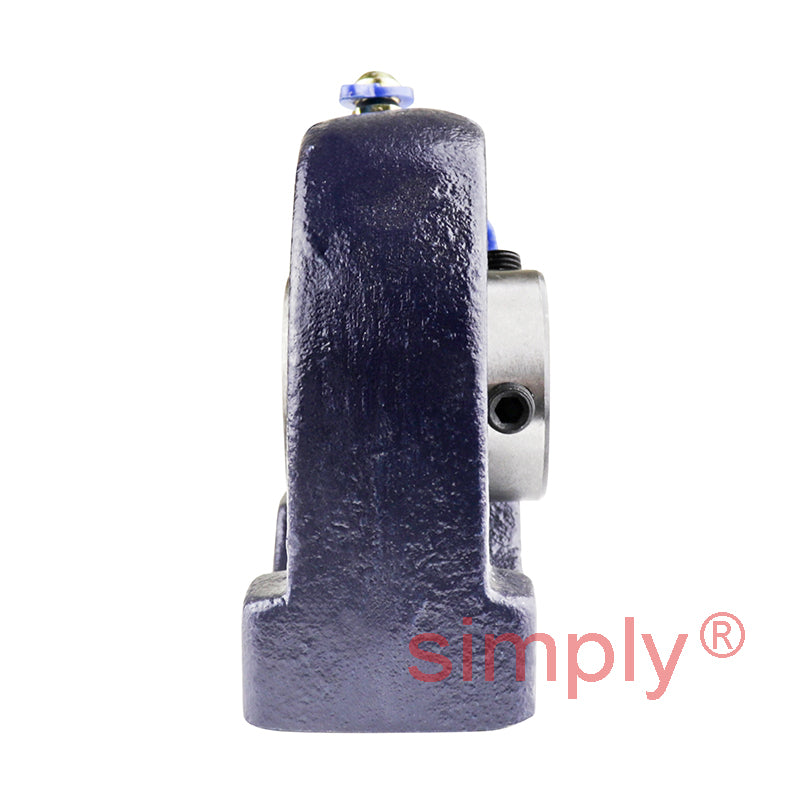

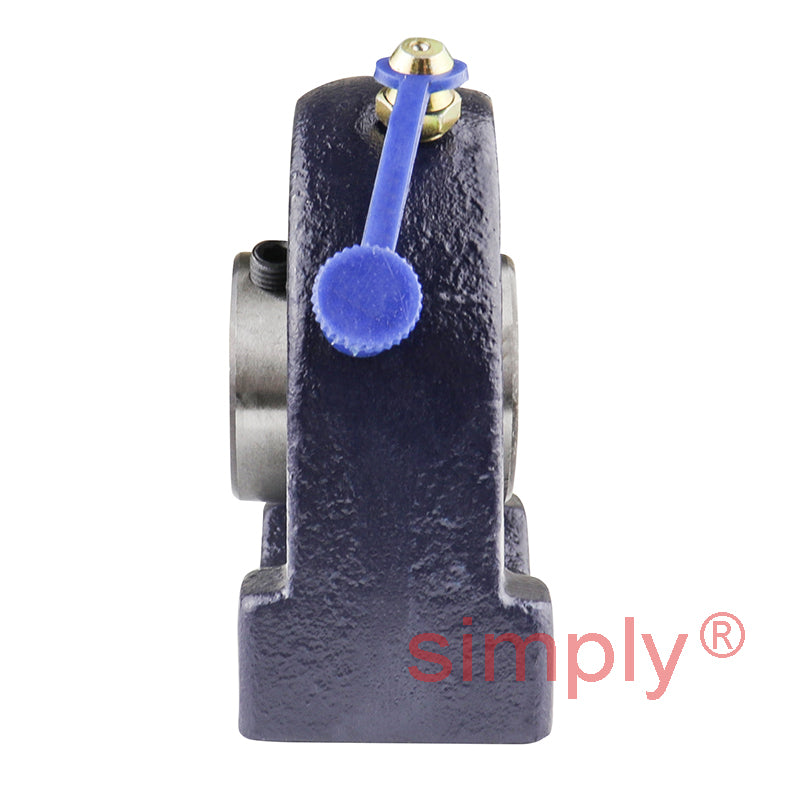

RHP SNP20 Threaded Base Small Footprint Pillow / Plummer Block and 20mm Bore Grub Screw Full Width Insert

RHP SNP20 Threaded Base Small Footprint Pillow / Plummer Block and 20mm Bore Grub Screw Full Width Insert
£37.90 ex VAT£45.48inc. VAT
£37.90 ex VAT£45.48 inc. VAT
Sale Sold out

In stock

Price Break
10+ £33.73
20+ £31.83
30+ £31.45
40+ £31.07
50+ £30.70
75+ £30.32
100+ £28.42
200+ £28.04
250+ £27.66
500+ £27.28
1000+ £26.53
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint

Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
SNP
Bolt Hole Centres:
50.8mm
Technical
Bore 20mm
L 65mm
H 33.3mm
H1 13.5mm
H2 65.8mm
J 50.8mm
Threads M8x1.25
A 32mm
A1 22.5mm
B 30.96mm
s 12.75mm
d1 28.5mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
