SKU: SNP2-RHP

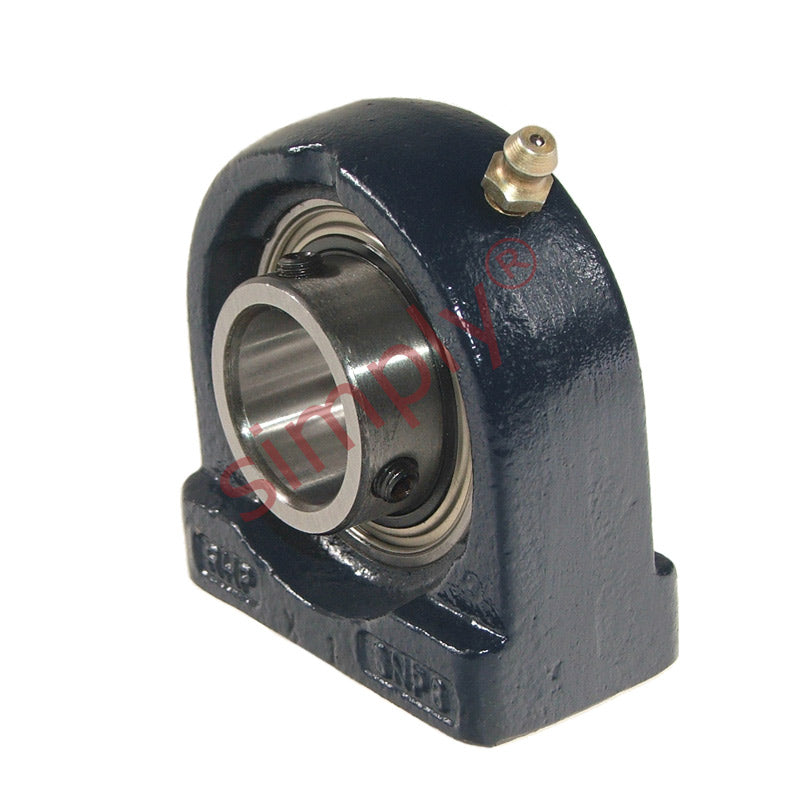

RHP SNP2 Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert
RHP SNP2 Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert
Regular price
£119.47
ex VAT£143.36inc. VAT
Regular price
Sale price
£119.47
ex VAT£143.36
inc. VAT
In stock
Price Break
10+
£106.33
20+
£100.36
30+
£99.16
40+
£97.97
50+
£96.77
75+
£95.58
100+
£89.61
200+
£88.41
250+
£87.22
500+
£86.02
1000+
£83.63
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SNP
- Bolt Hole Centres:
- 118.01mm = 4.646 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 6.063 inch |
| H | 2.5 inch |
| H1 | 1.043 inch |
| H2 | 5.118 inch |
| J | 4.646 inch |
| Threads | 5/8-11 UNC |
| A | 2.362 inch |
| A1 | 1.639 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
