SKU: SNLN3040-SKF

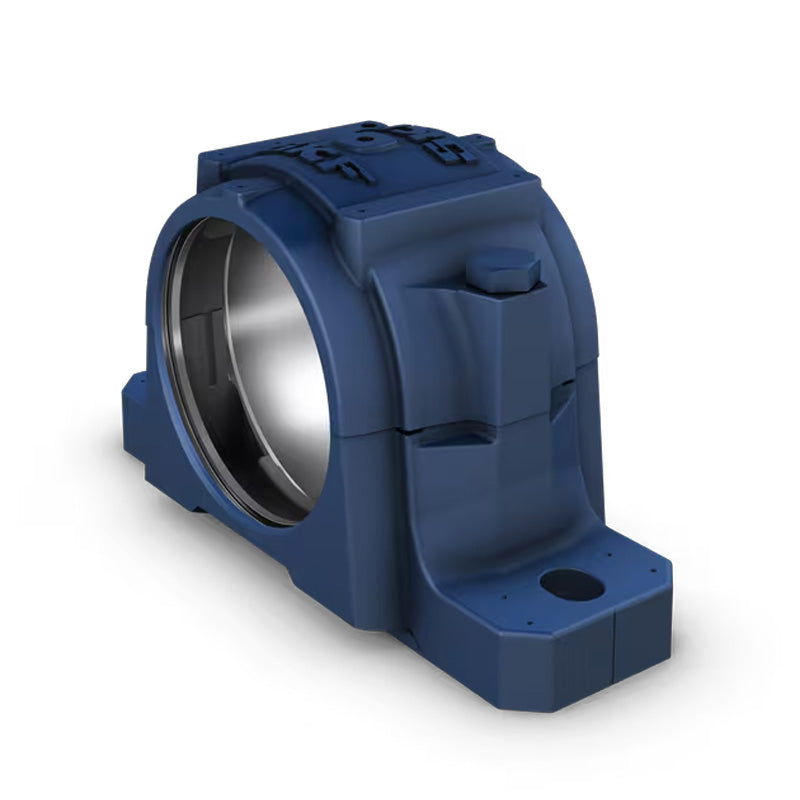

SKF SNLN3040 Cast Iron Split Pillow Block Housing
SKF SNLN3040 Cast Iron Split Pillow Block Housing
Regular price
£1,837.24
ex VAT£2,204.69inc. VAT
Regular price
Sale price
£1,837.24
ex VAT£2,204.69
inc. VAT
In stock
Price Break
10+
£1,635.14
19+
£1,543.28
29+
£1,524.91
39+
£1,506.54
49+
£1,488.16
74+
£1,469.79
99+
£1,377.93
199+
£1,359.56
249+
£1,341.19
499+
£1,322.81
999+
£1,286.07
Couldn't load pickup availability
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 515mm
Technical
Technical
| da | 180mm |
|---|---|
| Ca | 102mm |
| Da | 310mm |
| A | 240mm |
| A1 | 170mm |
| H | 368mm |
| H1 | 180mm |
| H2 | 60mm |
| J | 515mm |
| L | 610mm |
| N | 42mm |
| N1 | 35mm |
| J6 | 566mm |
| J7 | 63mm |
| N4 max | 16mm |
| ba | 75mm |
| bc | 98mm |
