SKU: SNLN3036-SKF

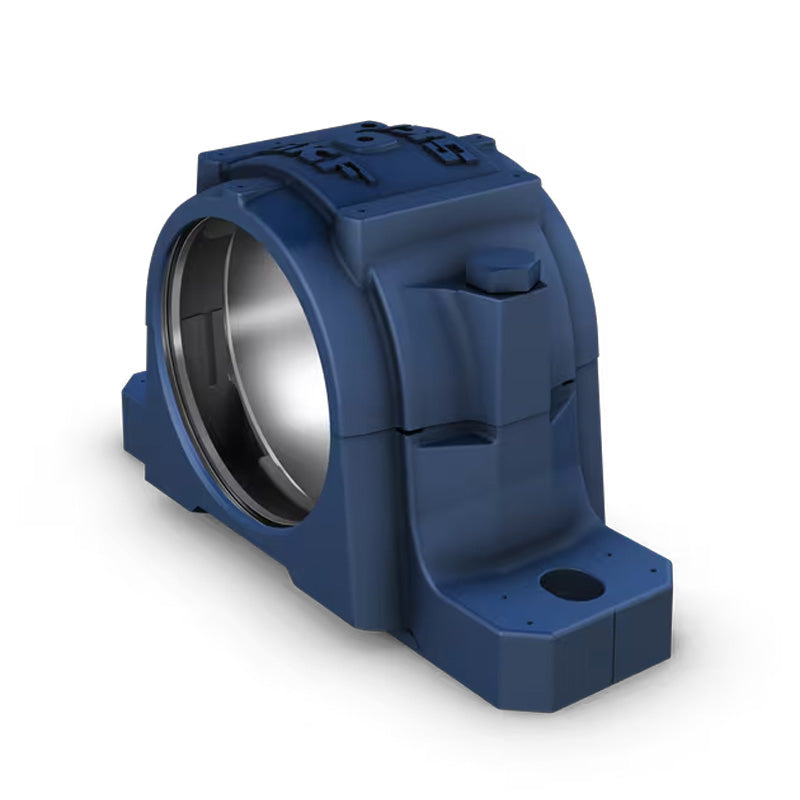

SKF SNLN3036 Cast Iron Split Pillow Block Housing
SKF SNLN3036 Cast Iron Split Pillow Block Housing
Regular price
£1,141.00
ex VAT£1,369.20inc. VAT
Regular price
Sale price
£1,141.00
ex VAT£1,369.20
inc. VAT
In stock
Price Break
4+
£1,015.49
9+
£958.44
19+
£947.03
29+
£935.62
39+
£924.21
49+
£912.80
59+
£855.75
69+
£844.34
79+
£832.93
89+
£821.52
99+
£798.70
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 470mm
Technical
Technical
| da | 160mm |
|---|---|
| Ca | 94mm |
| Da | 280mm |
| A | 225mm |
| A1 | 160mm |
| H | 342mm |
| H1 | 170mm |
| H2 | 60mm |
| J | 470mm |
| L | 550mm |
| N | 42mm |
| N1 | 35mm |
| J6 | 506mm |
| J7 | 58mm |
| N4 max | 12mm |
| ba | 69mm |
| bc | 94mm |
