SKU: SNLN3034-SKF

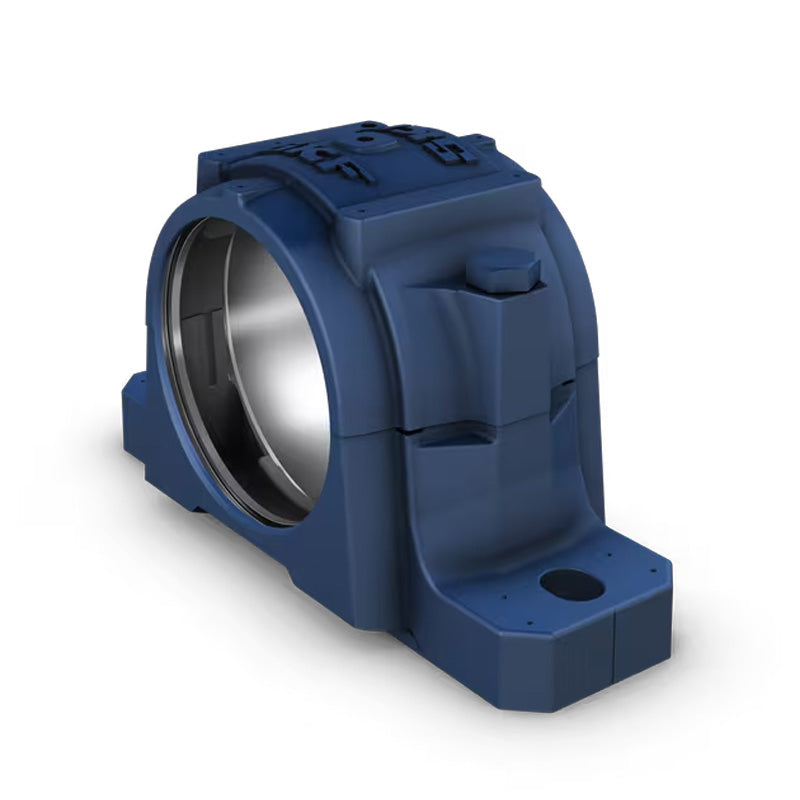

SKF SNLN3034 Cast Iron Split Pillow Block Housing
SKF SNLN3034 Cast Iron Split Pillow Block Housing
Regular price
£1,111.59
ex VAT£1,333.91inc. VAT
Regular price
Sale price
£1,111.59
ex VAT£1,333.91
inc. VAT
In stock
Price Break
4+
£989.32
9+
£933.74
19+
£922.62
29+
£911.50
39+
£900.39
49+
£889.27
59+
£833.69
69+
£822.58
79+
£811.46
89+
£800.35
99+
£778.11
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 450mm
Technical
Technical
| da | 150mm |
|---|---|
| Ca | 87mm |
| Da | 260mm |
| A | 210mm |
| A1 | 160mm |
| H | 322mm |
| H1 | 160mm |
| H2 | 60mm |
| J | 450mm |
| L | 530mm |
| N | 42mm |
| N1 | 35mm |
| J6 | 486mm |
| J7 | 58mm |
| N4 max | 12mm |
| ba | 65mm |
| bc | 87mm |
