SKU: SNLN3030-SKF

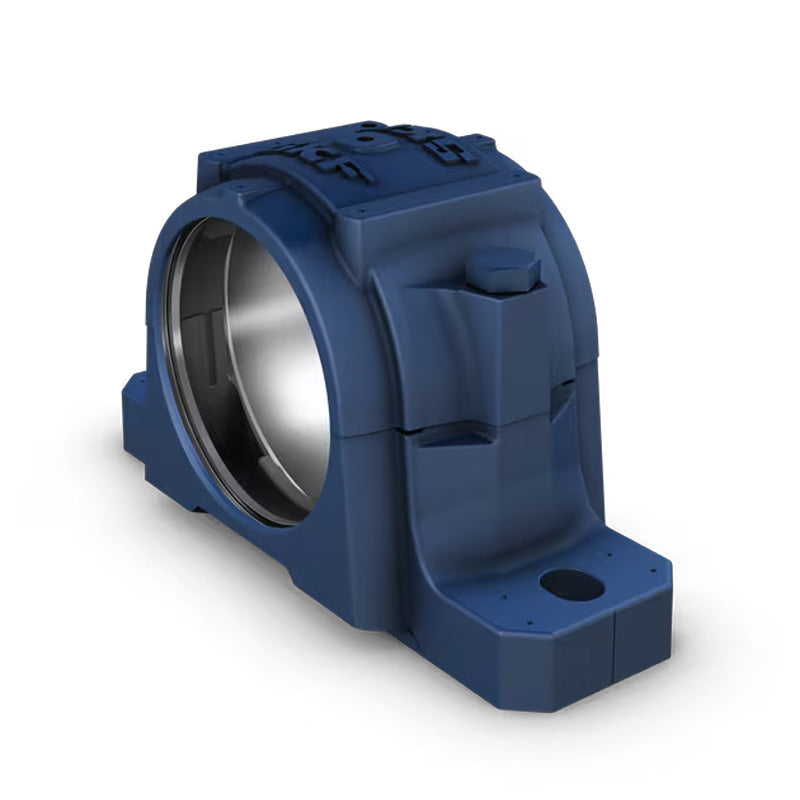

SKF SNLN3030 Cast Iron Split Pillow Block Housing
SKF SNLN3030 Cast Iron Split Pillow Block Housing
Regular price
£709.19
ex VAT£851.03inc. VAT
Regular price
Sale price
£709.19
ex VAT£851.03
inc. VAT
In stock
Price Break
4+
£631.18
9+
£595.72
19+
£588.63
29+
£581.54
39+
£574.44
49+
£567.35
59+
£531.89
69+
£524.80
79+
£517.71
89+
£510.62
99+
£496.43
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 380mm
Technical
Technical
| da | 135mm |
|---|---|
| Ca | 86mm |
| Da | 225mm |
| A | 190mm |
| A1 | 130mm |
| H | 290mm |
| H1 | 150mm |
| H2 | 50mm |
| J | 380mm |
| L | 445mm |
| N | 35mm |
| N1 | 28mm |
| J6 | 414mm |
| J7 | 46mm |
| N4 max | 12mm |
| ba | 57mm |
| bc | 82mm |
