SKU: SNLN3028-SKF

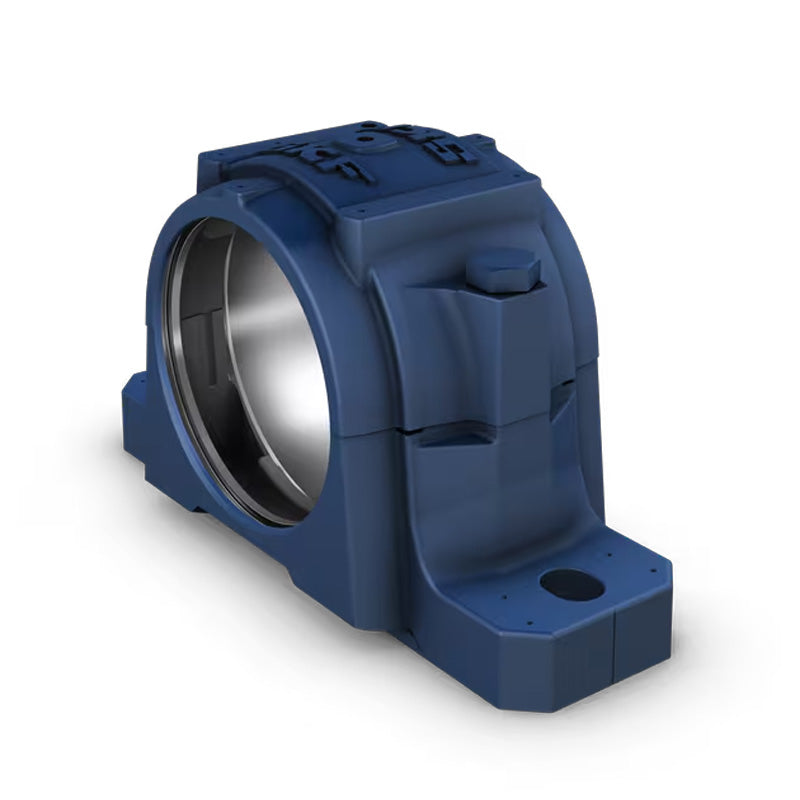

SKF SNLN3028 Cast Iron Split Pillow Block Housing
SKF SNLN3028 Cast Iron Split Pillow Block Housing
Regular price
£647.90
ex VAT£777.48inc. VAT
Regular price
Sale price
£647.90
ex VAT£777.48
inc. VAT
In stock
Price Break
4+
£576.63
9+
£544.23
19+
£537.75
29+
£531.28
39+
£524.80
49+
£518.32
59+
£485.92
69+
£479.44
79+
£472.97
89+
£466.49
99+
£453.53
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 350mm
Technical
Technical
| da | 125mm |
|---|---|
| Ca | 79mm |
| Da | 210mm |
| A | 175mm |
| A1 | 120mm |
| H | 270mm |
| H1 | 140mm |
| H2 | 45mm |
| J | 350mm |
| L | 410mm |
| N | 32mm |
| N1 | 26mm |
| J6 | 378mm |
| J7 | 44mm |
| N4 max | 8mm |
| ba | 53mm |
| bc | 75mm |
