SKU: SNLN3026-SKF

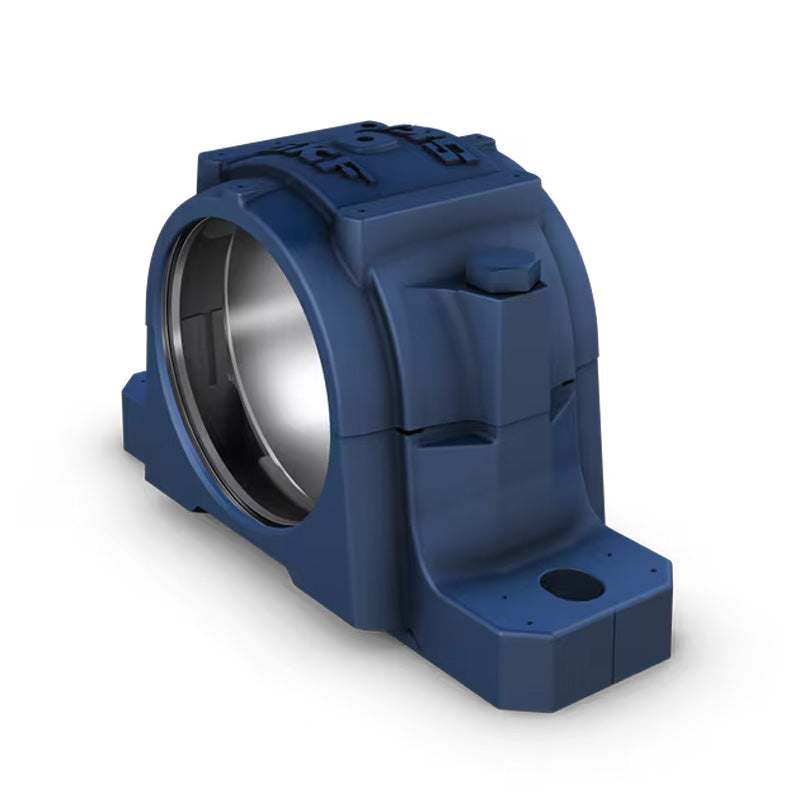

SKF SNLN3026 Cast Iron Split Pillow Block Housing
SKF SNLN3026 Cast Iron Split Pillow Block Housing
Regular price
£581.30
ex VAT£697.56inc. VAT
Regular price
Sale price
£581.30
ex VAT£697.56
inc. VAT
In stock
Price Break
10+
£517.36
19+
£488.29
29+
£482.48
39+
£476.67
49+
£470.85
74+
£465.04
99+
£435.98
199+
£430.16
249+
£424.35
499+
£418.54
999+
£406.91
Couldn't load pickup availability
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 350mm
Technical
Technical
| da | 115mm |
|---|---|
| Ca | 79mm |
| Da | 200mm |
| A | 175mm |
| A1 | 120mm |
| H | 242mm |
| H1 | 125mm |
| H2 | 45mm |
| J | 350mm |
| L | 410mm |
| N | 32mm |
| N1 | 26mm |
| J6 | 378mm |
| J7 | 44mm |
| N4 max | 8mm |
| ba | 52mm |
| bc | 76mm |
