SKU: SNL3134-SKF

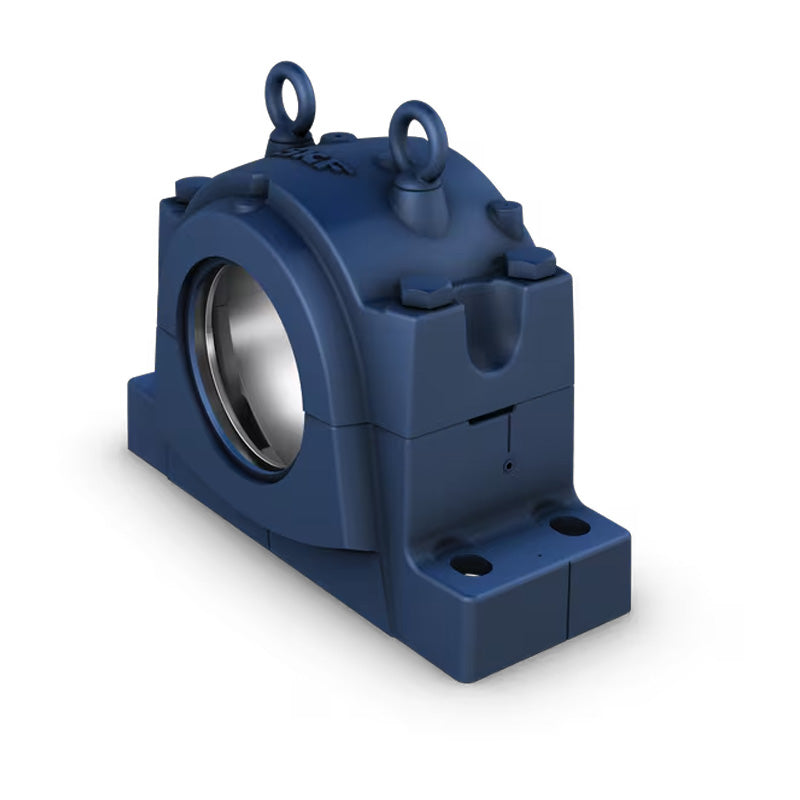

SKF SNL3134 Cast Iron Split Pillow Block Housing
SKF SNL3134 Cast Iron Split Pillow Block Housing
Regular price
£1,470.35
ex VAT£1,764.42inc. VAT
Regular price
Sale price
£1,470.35
ex VAT£1,764.42
inc. VAT
Equivalent to: SE3134
In stock
Price Break
4+
£1,308.61
9+
£1,235.09
19+
£1,220.39
29+
£1,205.69
39+
£1,190.98
49+
£1,176.28
59+
£1,102.76
69+
£1,088.06
79+
£1,073.36
89+
£1,058.65
99+
£1,029.25
Description
Description
|
SKF SNL Split Plummer Block Housings: SNL plummer block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They allow maximum service life to be achieved with the incorporated bearings with less need for maintenance. Benefits: Cost-effective bearing arrangements can be made with different housing variants and seal designs, easy installation. |
Equivalent: SE3134
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 430mm
Technical
Technical
| da | 150mm |
|---|---|
| A | 230mm = 9.06 inch |
| A1 | 180mm = 7.09 inch |
| A2 | 240mm = 9.45 inch |
| A3 | 300mm = 11.81 inch |
| X | 14mm = 0.55 inch |
| H | 333mm = 13.11 inch |
| H1 | 170mm = 6.693 inch |
| H2 | 70mm = 2.76 inch |
| L | 510mm = 20.08 inch |
| J | 430mm = 16.93 inch |
| J1 | 100mm = 3.94 inch |
| S | 90mm = 3.54 inch |
| G | 24mm = 1 inch |
| Weight | 69.5 kg |
