SKU: SM30-2-SKF

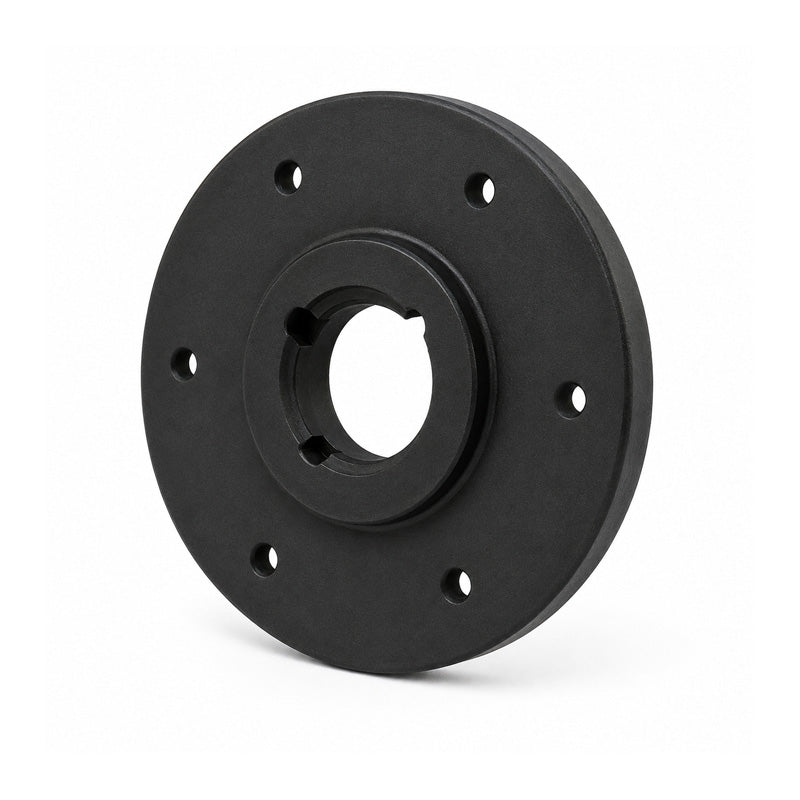

SKF SM30-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM30-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
£182.31
ex VAT£218.77inc. VAT
Regular price
Sale price
£182.31
ex VAT£218.77
inc. VAT
In stock
Price Break
10+
£162.26
19+
£153.14
29+
£151.32
39+
£149.49
49+
£147.67
74+
£145.85
99+
£136.73
199+
£134.91
249+
£133.09
499+
£131.26
999+
£127.62
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 485mm
- Width:
- 51mm
Technical
Technical
| Hub Reference | SM30-2 |
|---|---|
| Bush Number | 3020 |
| A | 485mm |
| B | 250mm |
| C | 340mm |
| D | 51mm |
| E | 13.5mm |
| F/G | 147mm |
| H | 18.75mm |
| J | 8 x 13.5mm |
