SKU: SLG256_IMP_NAK

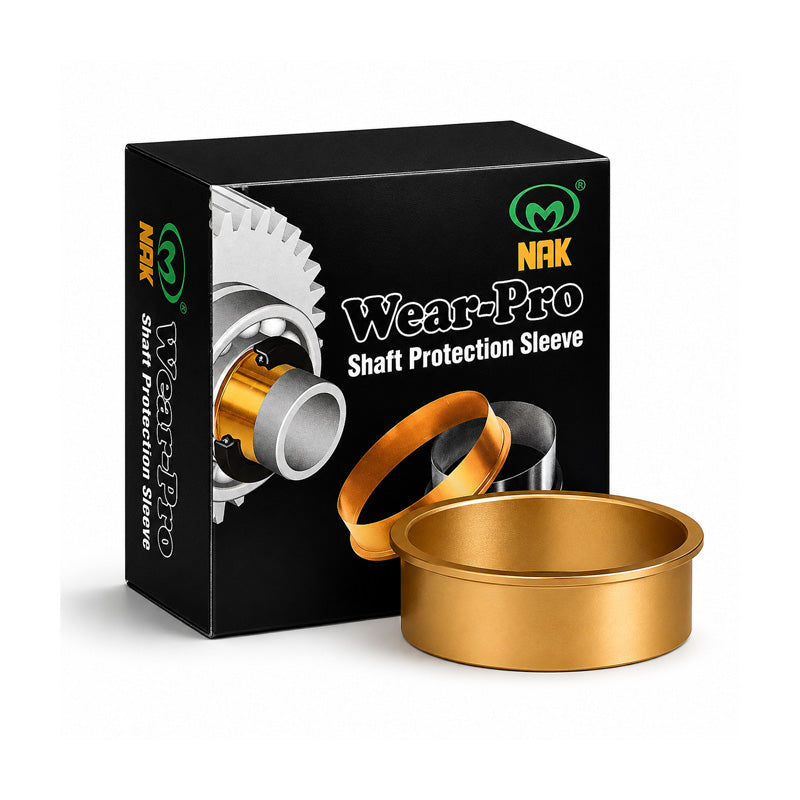

NAK SLG256 Hardened Stainless Sleeve for Shafts 6.745-6.755 inch - Allow 7-10 Days
NAK SLG256 Hardened Stainless Sleeve for Shafts 6.745-6.755 inch - Allow 7-10 Days
Regular price
£155.22
ex VAT£186.26inc. VAT
Regular price
Sale price
£155.22
ex VAT£186.26
inc. VAT
Allow 7-10 Days
In stock
Price Break
5+
£153.67
10+
£147.46
20+
£144.35
50+
£139.70
100+
£136.59
500+
£128.83
1000+
£108.65
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 1.063 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 6.75 inch
- Flange Diameter:
- 7.126 inch
Technical
Technical
| Shaft Diameter Range (A) | 6.745-6.755 inch |
|---|---|
| Nominal Shaft Diameter (A) | 6.75 inch |
| Flange Diameter (D) | 7.126 inch |
| Width on Shaft (X) | 0.811 inch |
| Overall Width (Y) | 1.063 inch |
| Installation Depth (Z) | 1.752 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
