SKU: SLG251_IMP_NAK

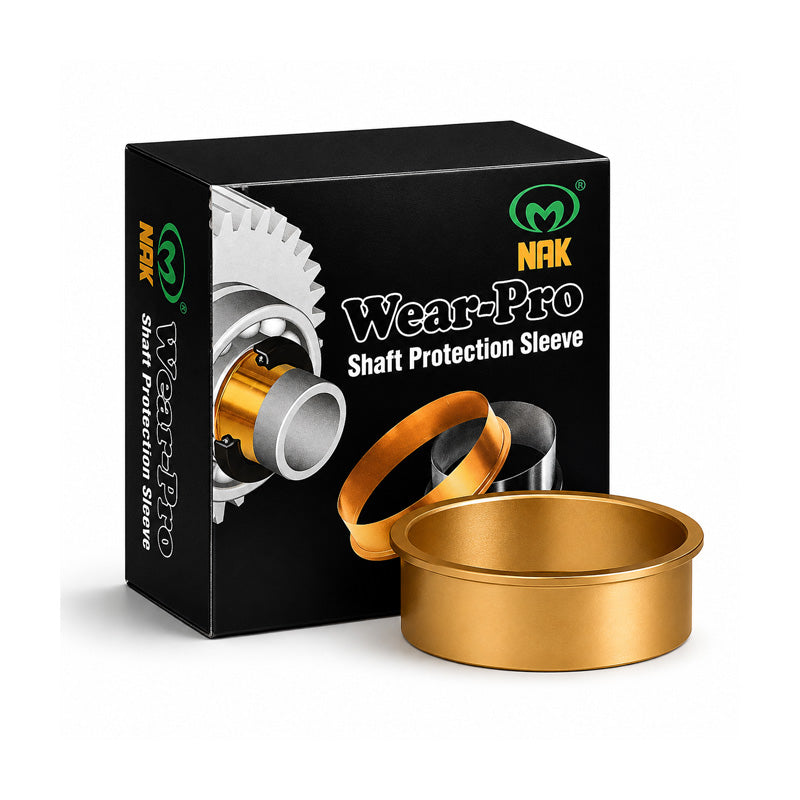

NAK SLG251 Hardened Stainless Sleeve for Shafts 6.198-6.208 inch - Allow 7-10 Days
NAK SLG251 Hardened Stainless Sleeve for Shafts 6.198-6.208 inch - Allow 7-10 Days
Regular price
£88.68
ex VAT£106.42inc. VAT
Regular price
Sale price
£88.68
ex VAT£106.42
inc. VAT
Allow 7-10 Days
In stock
Price Break
5+
£87.79
10+
£84.25
20+
£82.47
50+
£79.81
100+
£78.04
500+
£73.60
1000+
£62.08
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 1.063 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 6.203 inch
- Flange Diameter:
- 6.626 inch
Technical
Technical
| Shaft Diameter Range (A) | 6.198-6.208 inch |
|---|---|
| Nominal Shaft Diameter (A) | 6.203 inch |
| Flange Diameter (D) | 6.626 inch |
| Width on Shaft (X) | 0.811 inch |
| Overall Width (Y) | 1.063 inch |
| Installation Depth (Z) | 1.752 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
