SKU: SLG097_NAK

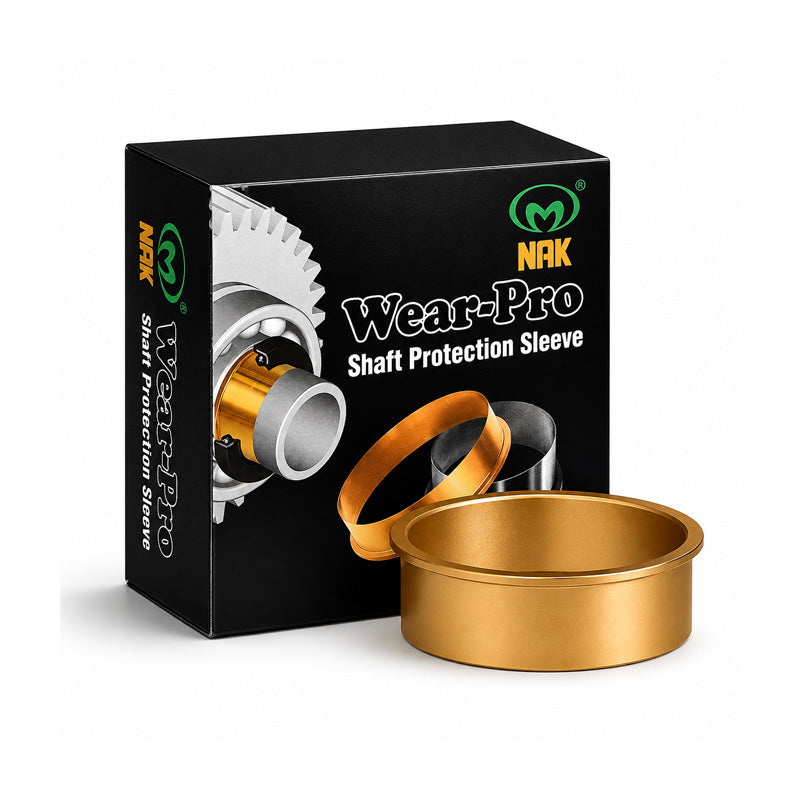

NAK SLG097 Hardened Stainless Sleeve for Shafts 55.520-55.680mm - Allow 7-10 Days
NAK SLG097 Hardened Stainless Sleeve for Shafts 55.520-55.680mm - Allow 7-10 Days
Regular price
£19.93
ex VAT£23.92inc. VAT
Regular price
Sale price
£19.93
ex VAT£23.92
inc. VAT
In stock
Price Break
10+
£19.73
19+
£18.93
29+
£18.53
39+
£17.94
49+
£17.54
74+
£16.54
99+
£13.95
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 23.8mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 55.58mm
- Flange Diameter:
- 63.5mm
Technical
Technical
| Shaft Diameter Range (A) | 55.520-55.680mm |
|---|---|
| Nominal Shaft Diameter (A) | 55.58mm |
| Flange Diameter (D) | 63.5mm |
| Width on Shaft (X) | 19.8mm |
| Overall Width (Y) | 23.8mm |
| Installation Depth (Z) | 33.4mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
