SKU: SLG078_IMP_NAK

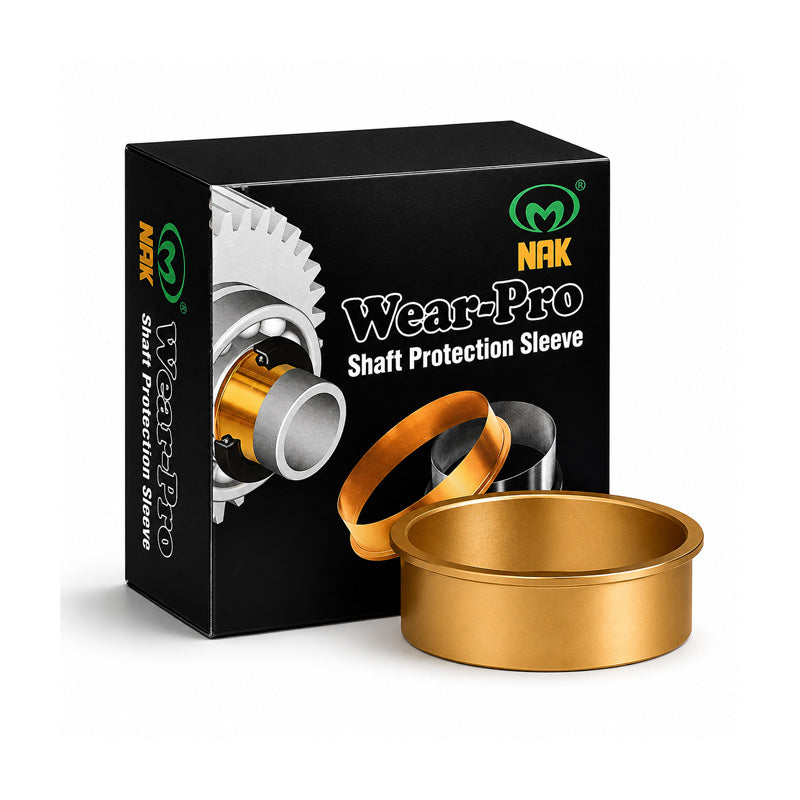

NAK SLG078 Hardened Stainless Sleeve for Shafts 1.809-1.815 inch - Allow 7-10 Days
NAK SLG078 Hardened Stainless Sleeve for Shafts 1.809-1.815 inch - Allow 7-10 Days
Regular price
£22.15
ex VAT£26.58inc. VAT
Regular price
Sale price
£22.15
ex VAT£26.58
inc. VAT
Allow 7-10 Days
In stock
Price Break
5+
£21.93
10+
£21.04
20+
£20.60
50+
£19.94
100+
£19.49
500+
£18.38
1000+
£15.51
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.689 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.813 inch
- Flange Diameter:
- 2.091 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.809-1.815 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.813 inch |
| Flange Diameter (D) | 2.091 inch |
| Width on Shaft (X) | 0.563 inch |
| Overall Width (Y) | 0.689 inch |
| Installation Depth (Z) | 1 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
