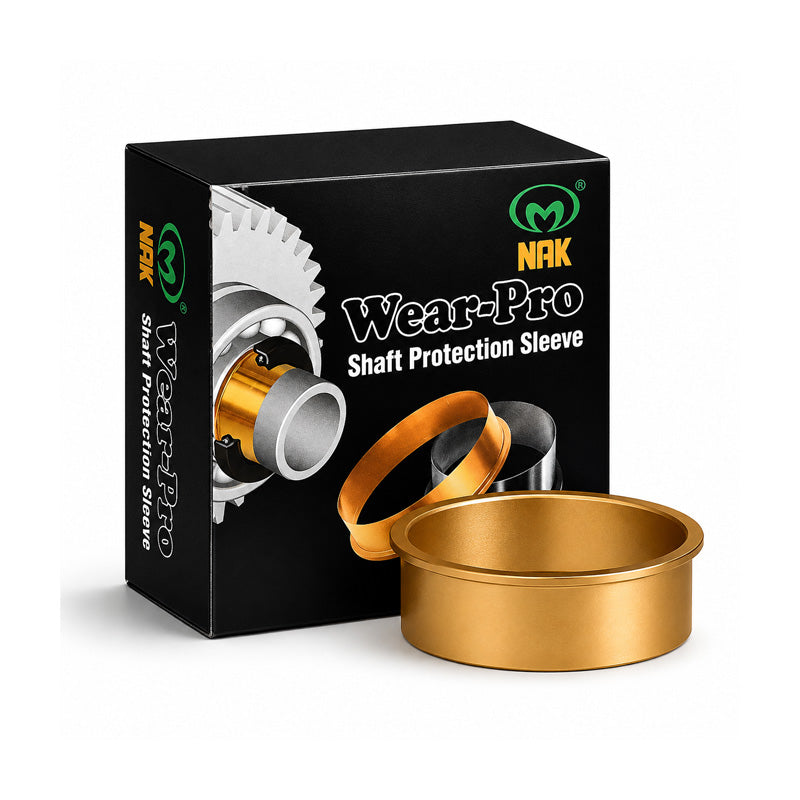

NAK SLG024 Hardened Stainless Sleeve for Shafts 0.982-0.986 inch - Allow 7-10 Days
NAK SLG024 Hardened Stainless Sleeve for Shafts 0.982-0.986 inch - Allow 7-10 Days
Regular price
£15.49
ex VAT£18.59inc. VAT
Regular price
Sale price
£15.49
ex VAT£18.59
inc. VAT
In stock
Price Break
10+
£15.34
19+
£14.72
29+
£14.41
39+
£13.94
49+
£13.63
74+
£12.86
99+
£10.84
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.433 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 0.984 inch
- Flange Diameter:
- 1.299 inch
Technical
Technical
| Shaft Diameter Range (A) | 0.982-0.986 inch |
|---|---|
| Nominal Shaft Diameter (A) | 0.984 inch |
| Flange Diameter (D) | 1.299 inch |
| Width on Shaft (X) | 0.315 inch |
| Overall Width (Y) | 0.433 inch |
| Installation Depth (Z) | 2 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
