SKU: SLG004_IMP_NAK

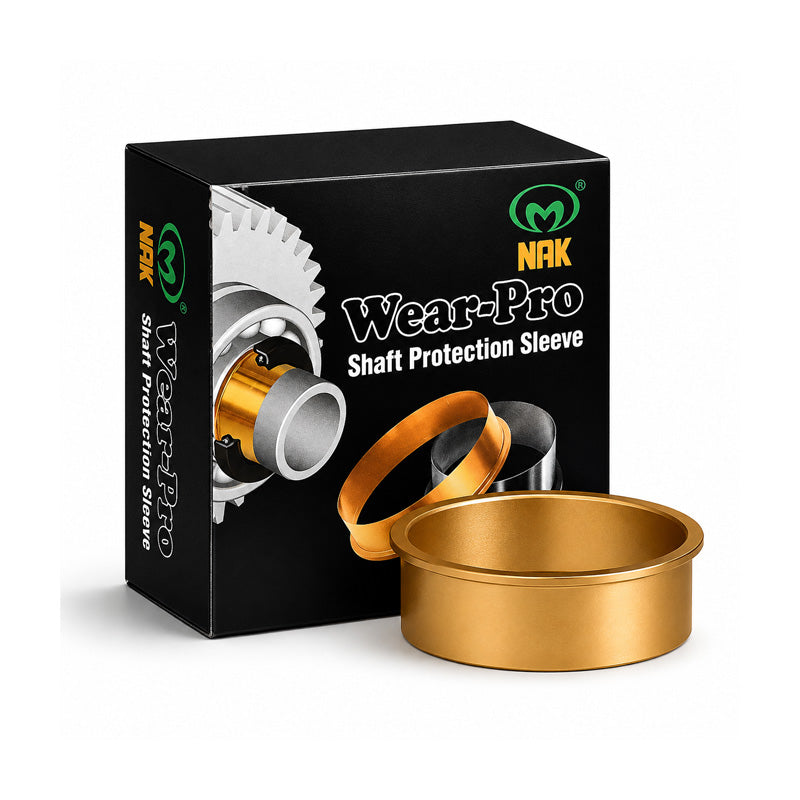

NAK SLG004 Hardened Stainless Sleeve for Shafts 0.560-0.566 inch - Allow 7-10 Days
NAK SLG004 Hardened Stainless Sleeve for Shafts 0.560-0.566 inch - Allow 7-10 Days
Regular price
£19.92
ex VAT£23.90inc. VAT
Regular price
Sale price
£19.92
ex VAT£23.90
inc. VAT
In stock
Price Break
5+
£19.72
10+
£18.92
20+
£18.53
50+
£17.93
100+
£17.53
500+
£16.53
1000+
£13.94
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.39 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 0.563 inch
- Flange Diameter:
- 0.752 inch
Technical
Technical
| Shaft Diameter Range (A) | 0.560-0.566 inch |
|---|---|
| Nominal Shaft Diameter (A) | 0.563 inch |
| Flange Diameter (D) | 0.752 inch |
| Width on Shaft (X) | 0.248 inch |
| Overall Width (Y) | 0.39 inch |
| Installation Depth (Z) | 1.831 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
