SKU: SLC40A-RHP

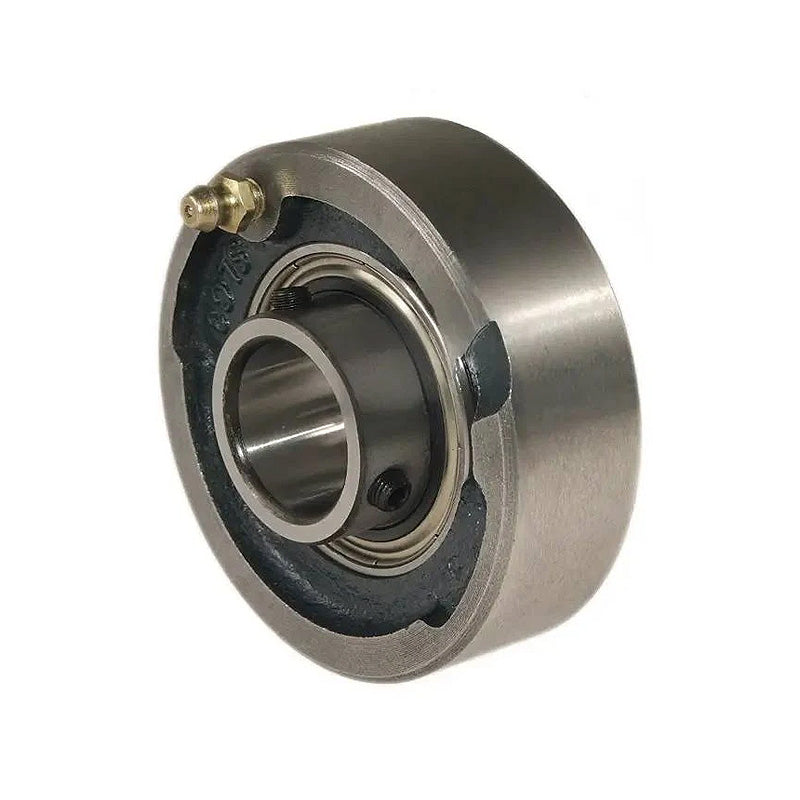

RHP SLC40A Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
RHP SLC40A Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
Regular price
£68.41
ex VAT£82.09inc. VAT
Regular price
Sale price
£68.41
ex VAT£82.09
inc. VAT
In stock
Price Break
10+
£60.88
20+
£57.46
30+
£56.78
40+
£56.09
50+
£55.41
75+
£54.72
100+
£51.30
200+
£50.62
250+
£49.94
500+
£49.25
1000+
£47.88
Share this product
Description
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 106.39mm
- Style:
- SLC
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 106.387mm |
| A | 37.31mm |
| A1 | 48.84mm |
| A2 | 51.28mm |
| A3 | 53.57mm |
| B | 49.23mm |
| B1 | 41.18mm |
| B2 | 43.64mm |
| B3 | 56.34mm |
| s | 19.1mm |
| s1 | 11.05mm |
| s2 | 21.46mm |
| d1 | 52.7mm |
| d2 | 60.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-40AG+insonly">1240-40AG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
