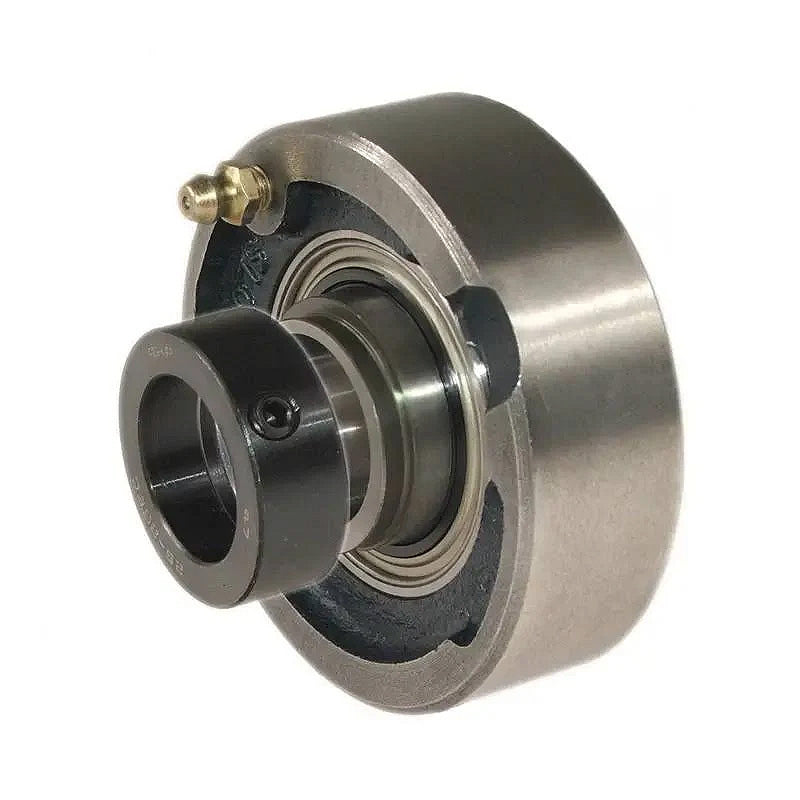

RHP SLC2DEC Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
RHP SLC2DEC Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
Regular price
£150.79
ex VAT£180.95inc. VAT
Regular price
Sale price
£150.79
ex VAT£180.95
inc. VAT
In stock
Price Break
10+
£134.20
20+
£126.66
30+
£125.15
40+
£123.65
50+
£122.14
75+
£120.63
100+
£113.09
200+
£111.58
250+
£110.07
500+
£108.57
1000+
£105.55
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 125.44mm
- Style:
- SLC
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 4.9385 inch |
| A | 1.594 inch |
| A3 | 2.513 inch |
| B3 | 2.813 inch |
| s2 | 1.095 inch |
| d2 | 3 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 2.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
