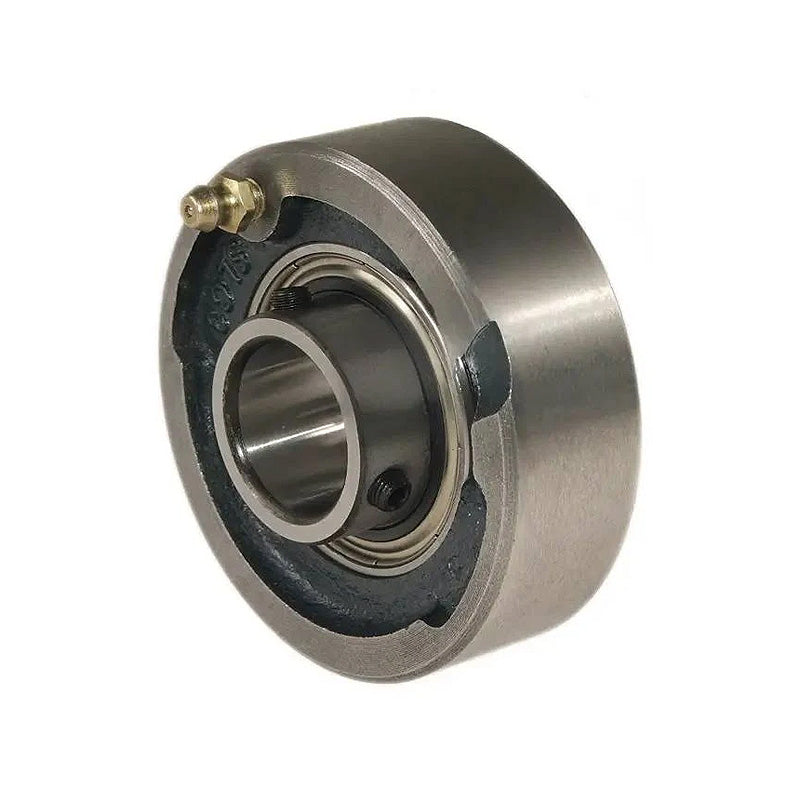

• RHP SLC2-3/16 Cast Iron Cartridge Unit with 2-3/16 inch Bore Insert 125.44mm Outside Diameter
1 1

SKU: SLC2.3/16-RHP

RHP SLC2-3/16 Cast Iron Cartridge Unit with 2-3/16 inch Bore Insert 125.44mm Outside Diameter

RHP SLC2-3/16 Cast Iron Cartridge Unit with 2-3/16 inch Bore Insert 125.44mm Outside Diameter
£131.13 ex VAT£157.36inc. VAT
£131.13 ex VAT£157.36 inc. VAT
Sale Sold out

In stock

Price Break
10+ £116.71
19+ £110.15
29+ £108.84
39+ £107.53
49+ £106.22
74+ £104.90
99+ £98.35
199+ £97.04
249+ £95.72
499+ £94.41
999+ £91.79
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Outside Diameter:
125.44mm
Style:
SLC
Technical
Bore 2-3/16 inch
L 4.9385 inch
A 1.594 inch
A1 2.109 inch
B 2.187 inch
s 0.877 inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 2.9 kg
Insert <a href="advanced_search_result.php?keywords=1055-2-3/16G+insonly">1055-2-3/16G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
