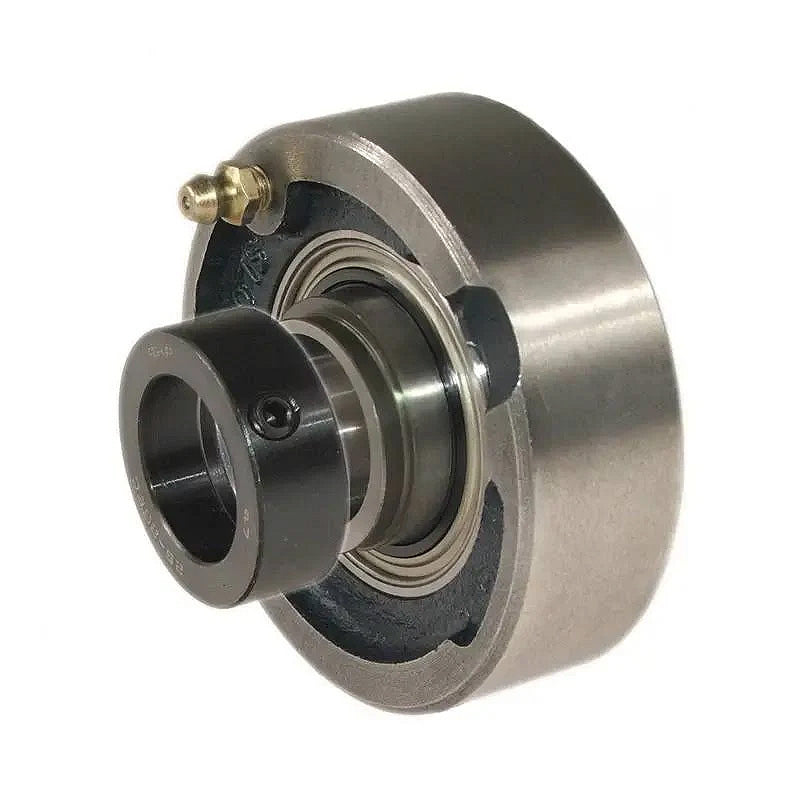

RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
Regular price
£42.46
ex VAT£50.95inc. VAT
Regular price
Sale price
£42.46
ex VAT£50.95
inc. VAT
In stock
Price Break
10+
£37.79
19+
£35.67
29+
£35.24
39+
£34.82
49+
£34.39
74+
£33.97
99+
£31.85
199+
£31.42
249+
£31.00
499+
£30.57
999+
£29.72
Couldn't load pickup availability
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 79.4mm
- Style:
- SLC
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.126 inch |
| A | 1.031 inch |
| A2 | 1.438 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
