SKU: SLC1-RHP

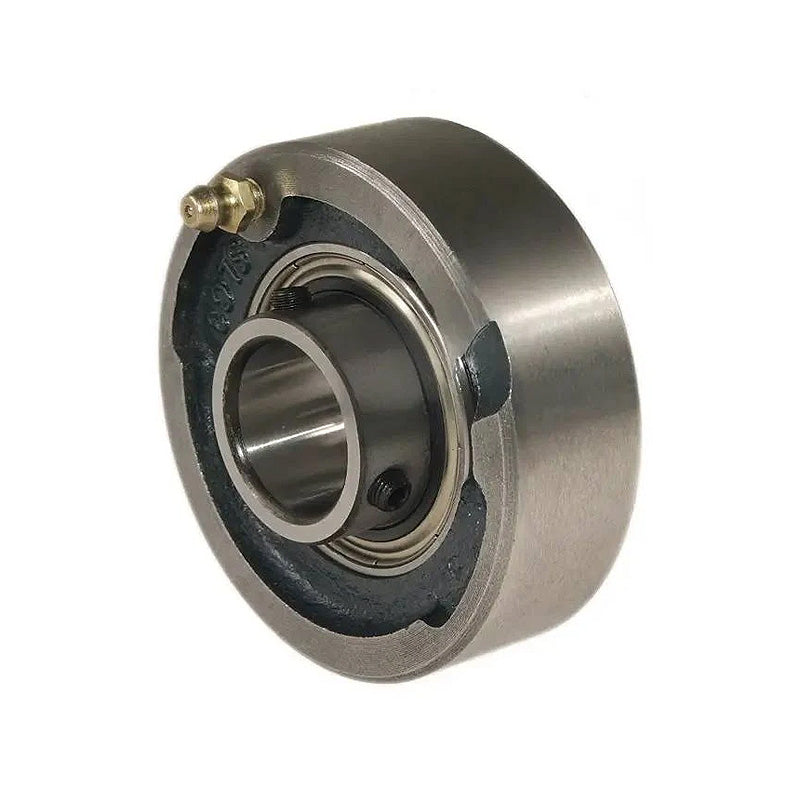

RHP SLC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
RHP SLC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
Regular price
£40.40
ex VAT£48.48inc. VAT
Regular price
Sale price
£40.40
ex VAT£48.48
inc. VAT
In stock
Price Break
10+
£35.96
20+
£33.94
30+
£33.54
40+
£33.13
50+
£32.73
75+
£32.32
100+
£30.30
200+
£29.90
250+
£29.50
500+
£29.09
1000+
£28.28
Share this product
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 79.4mm
- Style:
- SLC
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.126 inch |
| A | 1.031 inch |
| A1 | 1.297 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
