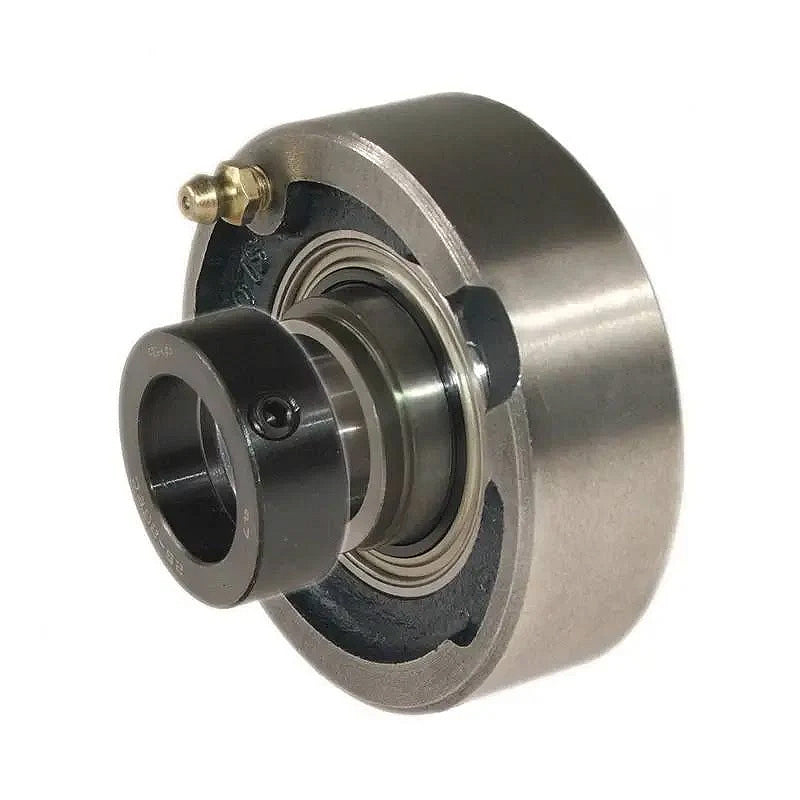

• RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
1 1

SKU: SLC1.3/4DEC-RHP

RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter

RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
£92.54 ex VAT£111.05inc. VAT
£92.54 ex VAT£111.05 inc. VAT
Sale Sold out

In stock

Price Break
10+ £82.36
19+ £77.73
29+ £76.81
39+ £75.88
49+ £74.96
74+ £74.03
99+ £69.41
199+ £68.48
249+ £67.55
499+ £66.63
999+ £64.78
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Outside Diameter:
111.15mm
Style:
SLC
Technical
Bore 1-3/4 inch
L 4.376 inch
A 1.437 inch
A3 2.093 inch
B3 2.218 inch
s2 0.845 inch
d2 2.5 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.1 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-3/4DECG+insonly">1045-1-3/4DECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
