SKU: SL7/8EC-RHP

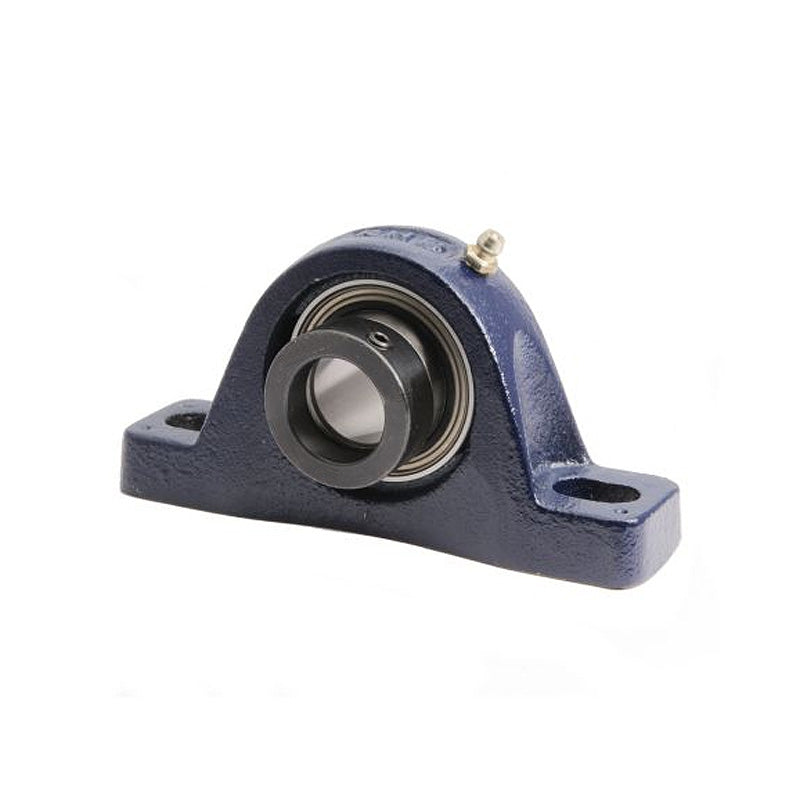

RHP SL7/8EC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentic Collar Flat Back Insert
RHP SL7/8EC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentic Collar Flat Back Insert
Regular price
£42.27
ex VAT£50.72inc. VAT
Regular price
Sale price
£42.27
ex VAT£50.72
inc. VAT
In stock
Price Break
10+
£37.62
20+
£35.51
30+
£35.09
40+
£34.66
50+
£34.24
75+
£33.82
100+
£31.70
200+
£31.28
250+
£30.86
500+
£30.44
1000+
£29.59
Description
Description
|
RHP SL-EC Series Plummer / Pillow Housings: Supplied with a sealed flat back bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 3.866-4.339 inch
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 5.472 inch |
| H | 1.312 inch |
| H1 | 0.504 inch |
| H2 | 2.669 inch |
| J max | 4.339 inch |
| J min | 3.866 inch |
| G | 0.375 inch |
| A | 1.417 inch |
| A1 | 0.965 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1225-7/8ECG+insonly">1225-7/8ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
