SKU: SL3/4DEC-RHP

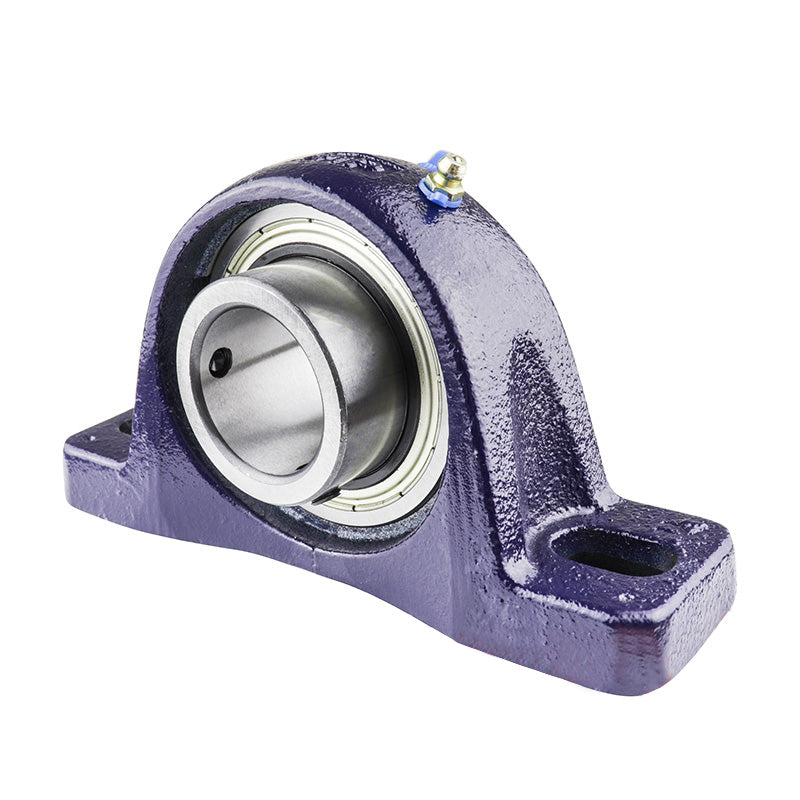

RHP SL3/4DEC Two Bolt Cast Iron Pillow Block and 3/4 Bore Eccentric Collar Full Width Insert
RHP SL3/4DEC Two Bolt Cast Iron Pillow Block and 3/4 Bore Eccentric Collar Full Width Insert
Regular price
£41.74
ex VAT£50.09inc. VAT
Regular price
Sale price
£41.74
ex VAT£50.09
inc. VAT
In stock
Price Break
10+
£37.15
20+
£35.06
30+
£34.64
40+
£34.23
50+
£33.81
75+
£33.39
100+
£31.30
200+
£30.89
250+
£30.47
500+
£30.05
1000+
£29.22
Share this product
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SL
- Bolt Hole Centres:
- 3.484-3.957 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 4.98 inch |
| H | 1.25 inch |
| H1 | 0.492 inch |
| H2 | 2.508 inch |
| J max | 3.957 inch |
| J min | 3.484 inch |
| G | 0.375 inch |
| A | 1.26 inch |
| A1 | 0.886 inch |
| B3 | 1.717 inch |
| s2 | 0.674 inch |
| d2 | 1.311 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4DECG+insonly">1020-3/4DECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
