SKU: SL2.3/4-RHP

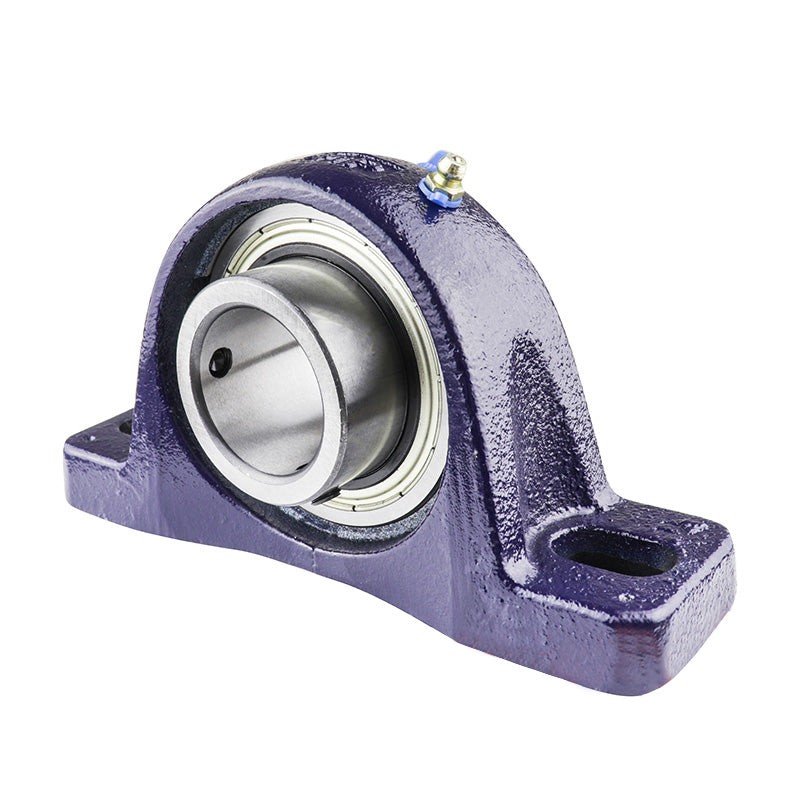

RHP SL2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Full Width Insert
RHP SL2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Full Width Insert
Regular price
£255.74
ex VAT£306.89inc. VAT
Regular price
Sale price
£255.74
ex VAT£306.89
inc. VAT
In stock
Price Break
10+
£227.61
20+
£214.82
30+
£212.27
40+
£209.71
50+
£207.15
75+
£204.59
100+
£191.81
200+
£189.25
250+
£186.69
500+
£184.13
1000+
£179.02
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- SL
- Bolt Hole Centres:
- 8.689-9.563 inch
Technical
Technical
| Bore | 2-3/4 inch |
|---|---|
| L | 11.748 inch |
| H | 3.25 inch |
| H1 | 1.374 inch |
| H2 | 6.563 inch |
| J max | 9.563 inch |
| J min | 8.689 inch |
| G | 0.75 inch |
| A | 3.252 inch |
| A1 | 2.189 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| s1 | - inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-3/4G+insonly">1075-2-3/4G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
