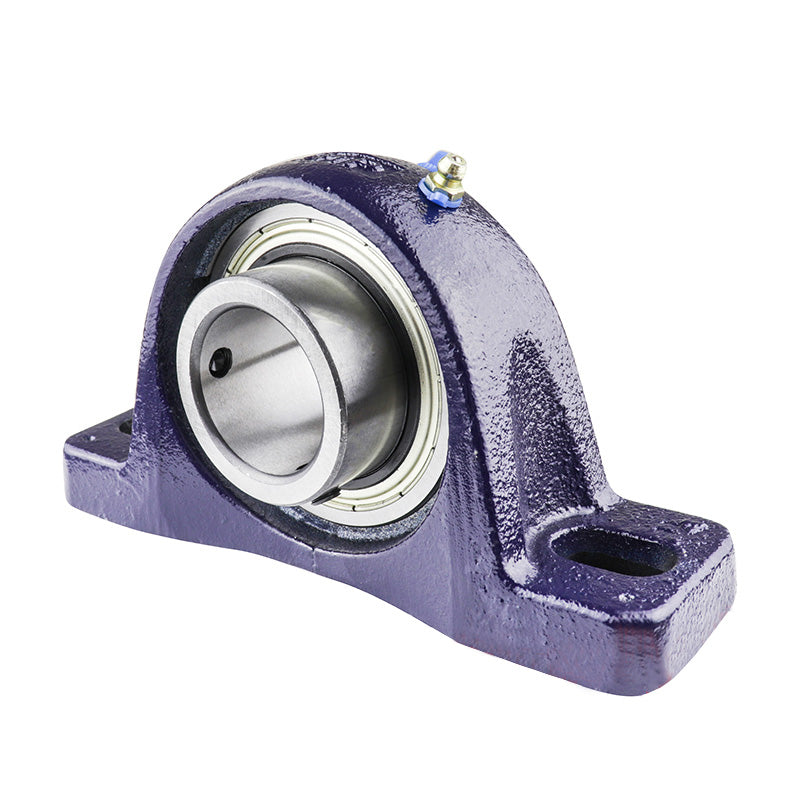

• RHP SL2-3/16 Two Bolt Cast Iron Pillow Block and 2-3/16 Bore Grub Screw Full Width Insert
1 1

SKU: SL2.3/16-RHP

RHP SL2-3/16 Two Bolt Cast Iron Pillow Block and 2-3/16 Bore Grub Screw Full Width Insert

RHP SL2-3/16 Two Bolt Cast Iron Pillow Block and 2-3/16 Bore Grub Screw Full Width Insert
£109.69 ex VAT£131.63inc. VAT
£109.69 ex VAT£131.63 inc. VAT
Sale Sold out

In stock

Price Break
10+ £97.62
20+ £92.14
30+ £91.04
40+ £89.94
50+ £88.85
75+ £87.75
100+ £82.27
200+ £81.17
250+ £80.07
500+ £78.97
1000+ £76.78
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Style:
SL
Bolt Hole Centres:
6.398-7.028 inch
Technical
Bore 2-3/16 inch
L 8.641 inch
H 2.437 inch
H1 0.913 inch
H2 5.039 inch
J max 7.028 inch
J min 6.398 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B 2.187 inch
s 0.877 inch
s1 - inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Insert <a href="advanced_search_result.php?keywords=1055-2-3/16G+insonly">1055-2-3/16G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
