SKU: SL2.1/8-RHP

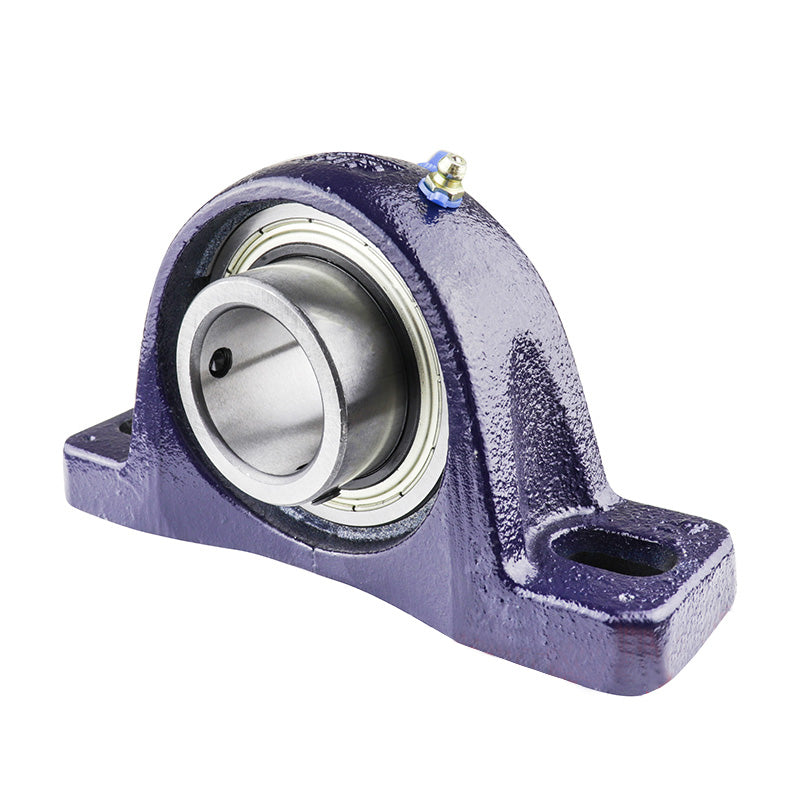

RHP SL2-1/8 Two Bolt Cast Iron Pillow Block and 2-1/8 Bore Grub Screw Full Width Insert
RHP SL2-1/8 Two Bolt Cast Iron Pillow Block and 2-1/8 Bore Grub Screw Full Width Insert
Regular price
£109.69
ex VAT£131.63inc. VAT
Regular price
Sale price
£109.69
ex VAT£131.63
inc. VAT
In stock
Price Break
10+
£97.62
19+
£92.14
29+
£91.04
39+
£89.95
49+
£88.85
74+
£87.75
99+
£82.27
199+
£81.17
249+
£80.07
499+
£78.98
999+
£76.78
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 6.398-7.028 inch
Technical
Technical
| Bore | 2-1/8 inch |
|---|---|
| L | 8.641 inch |
| H | 2.437 inch |
| H1 | 0.913 inch |
| H2 | 5.039 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| s1 | - inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1055-2-1/8G+insonly">1055-2-1/8G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
