SKU: SL1-RHP

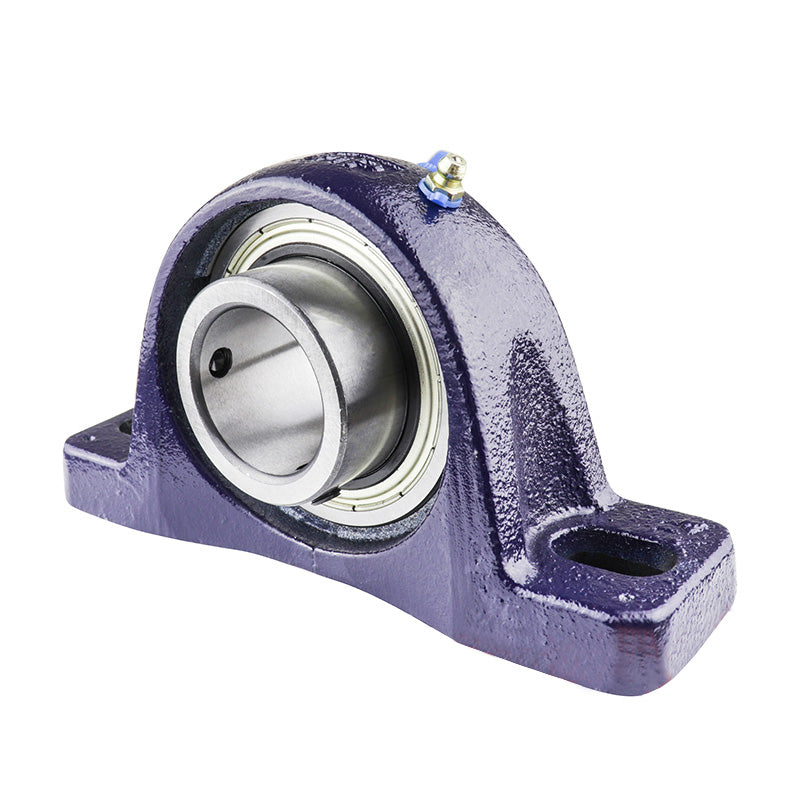

RHP SL1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Full Width Insert
RHP SL1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Full Width Insert
Regular price
£40.76
ex VAT£48.91inc. VAT
Regular price
Sale price
£40.76
ex VAT£48.91
inc. VAT
In stock
Price Break
10+
£36.27
20+
£34.24
30+
£33.83
40+
£33.42
50+
£33.01
75+
£32.61
100+
£30.57
200+
£30.16
250+
£29.75
500+
£29.34
1000+
£28.53
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SL
- Bolt Hole Centres:
- 3.866-4.339 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 5.472 inch |
| H | 1.312 inch |
| H1 | 0.504 inch |
| H2 | 2.669 inch |
| J max | 4.339 inch |
| J min | 3.866 inch |
| G | 0.375 inch |
| A | 1.417 inch |
| A1 | 0.965 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| s1 | 0.298 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
