SKU: SK003

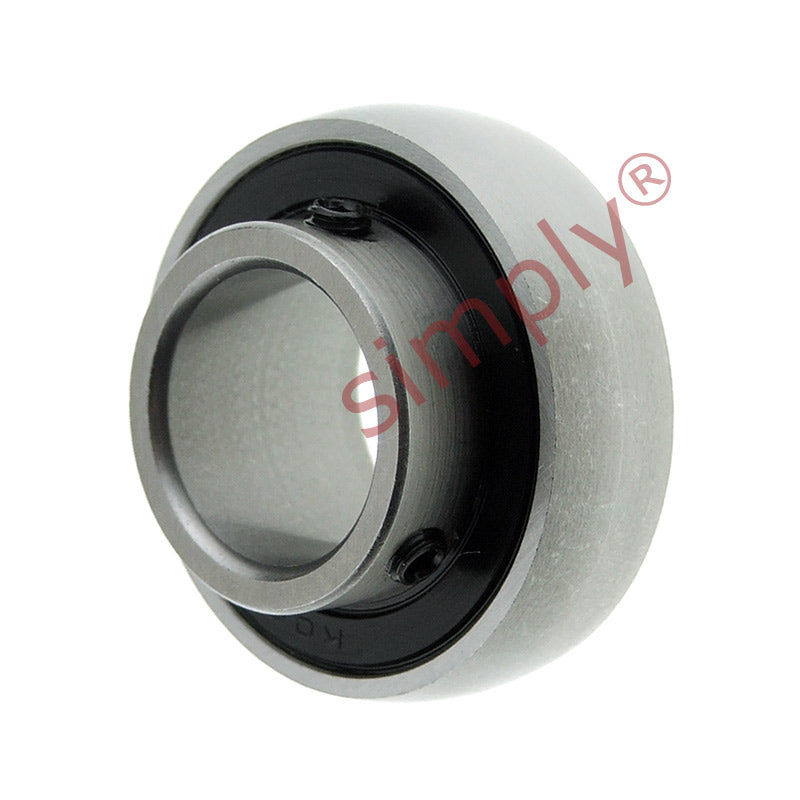

SK003 Stainless Steel Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia - Allow 2-3 Days
SK003 Stainless Steel Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia - Allow 2-3 Days
Regular price
£13.28
ex VAT£15.94inc. VAT
Regular price
Sale price
£13.28
ex VAT£15.94
inc. VAT
In stock
Price Break
5+
£13.15
10+
£12.62
20+
£12.35
50+
£11.95
100+
£11.69
500+
£11.02
1000+
£9.30
Couldn't load pickup availability
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Style:
- SK
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Bi | 17.5mm |
| Be | 10mm |
| r | 0.5mm |
| n | 5mm |
| G | 3.5mm |
| W | 23.1mm |
| Grub screw | M4x0.5 |
| Dynamic load | 610N ~ 62.203 kgf |
| Static load | 335N ~ 34.160 kgf |
| Weight | 0.06 kg |
