SKU: SILKB16F-SKF

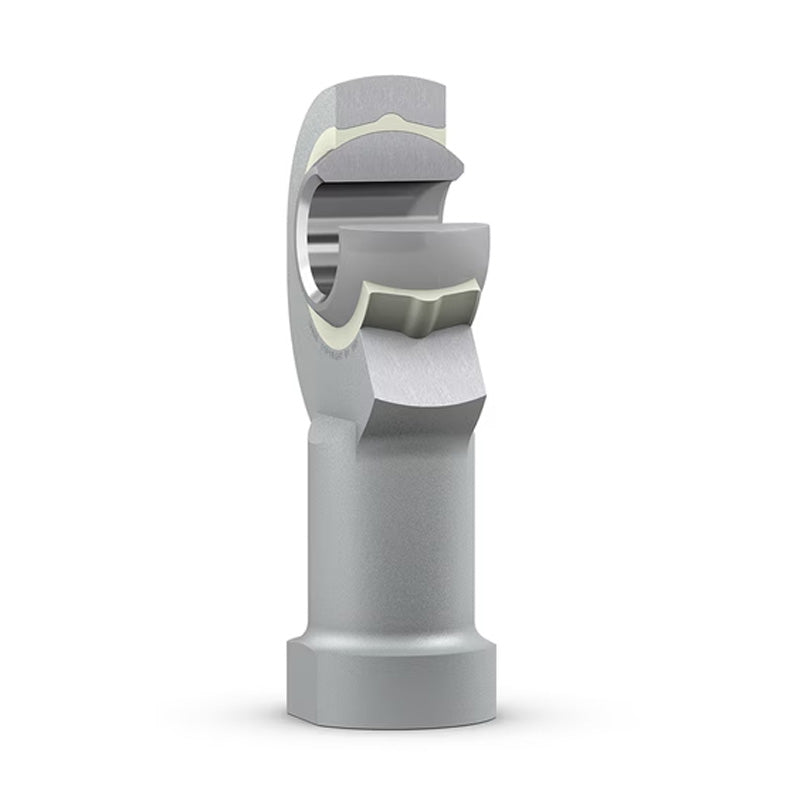

SKF SILKB16F Left Hand Steel / PTFE FRP Lined Plain Female Rod End M16 Thread
SKF SILKB16F Left Hand Steel / PTFE FRP Lined Plain Female Rod End M16 Thread
Regular price
£63.29
ex VAT£75.95inc. VAT
Regular price
Sale price
£63.29
ex VAT£75.95
inc. VAT
Equivalent to: FSL-M16
In stock
Price Break
10+
£56.33
19+
£53.17
29+
£52.53
39+
£51.90
49+
£51.27
74+
£50.63
99+
£47.47
199+
£46.84
249+
£46.20
499+
£45.57
999+
£44.30
Description
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: FSL-M16
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M16
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 16mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 16mm |
|---|---|
| d2 max | 43mm |
| G | M16 |
| B | 21mm |
| C1 max | 15mm |
| h | 64mm |
| a | 15deg |
| Dynamic load C | 21.4 kN |
| Static load Co | 34.5 kN |
| Weight | 0.23 kg |
| dk | 28.5mm |
| d3 | 22mm |
| d4 max | 29mm |
| l3 min | 24mm |
| l4 max | 86mm |
| l5 | 8mm |
| l7 min | 21mm |
| r1 min | 0.3mm |
| w h14 | 22mm |
