SKU: SILKAC14M-CDX

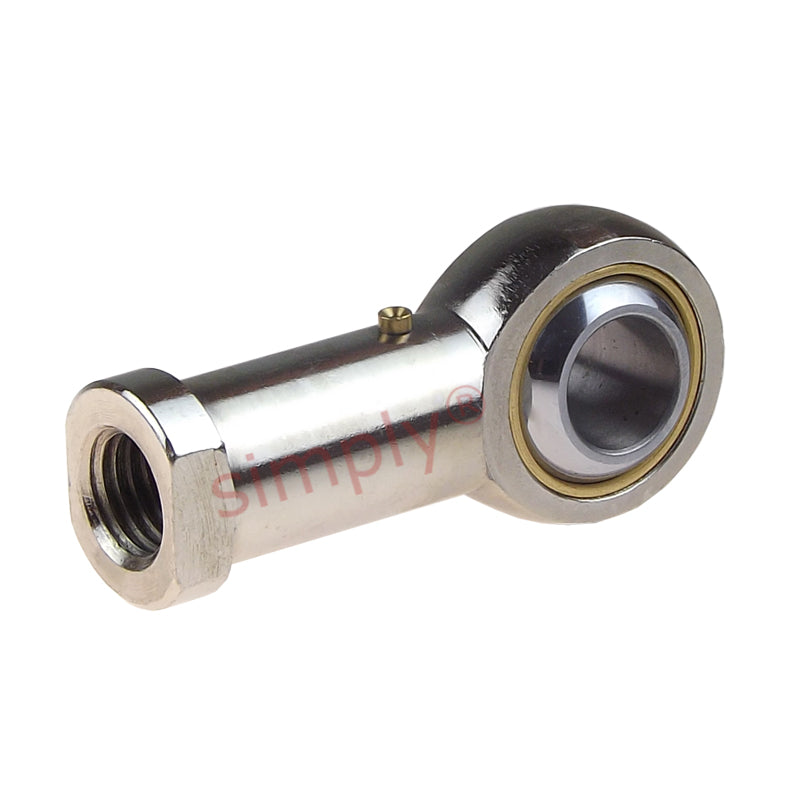

Codex SILKAC14M Left Hand Steel / Bronze Lined Plain Female Rod End M14 Thread
Codex SILKAC14M Left Hand Steel / Bronze Lined Plain Female Rod End M14 Thread
Regular price
£24.05
ex VAT£28.86inc. VAT
Regular price
Sale price
£24.05
ex VAT£28.86
inc. VAT
Equivalent to: TSFL14 PHSL14 SILBP14S PHS14L FBL-M14
In stock
Price Break
10+
£21.40
19+
£20.20
29+
£19.96
39+
£19.72
49+
£19.48
74+
£19.24
99+
£18.04
199+
£17.80
249+
£17.56
499+
£17.31
999+
£16.83
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: TSFL14 PHSL14 SILBP14S PHS14L FBL-M14
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 14mm
- Material:
- Bronze Lined
Technical
Technical
| d | 14mm |
|---|---|
| d2 max | 37mm |
| G | M14 |
| B | 19mm |
| C1 max | 13.5mm |
| h1 | 57mm |
| Max misalignment angle | 16 degrees |
| Dynamic load | 17 kN |
| Static load | 20.4 kN |
| dk | 25.4mm |
| d3 | 20mm |
| d4 max | 27mm |
| l3 min | 21mm |
| l4 max | 77mm |
| l5 | 8mm |
| l7 min | 18mm |
| r1 min | 0.3mm |
| w | 22mm |
| Weight | 0.16 kg |
